Best pfSense® Hardware for Home/SOHO/Business

Published on: December 10, 2022

.

12 min read

.

For German Version

.

Listen to this Article

pfSense® software is a firewall and router that is free and open source. One of the most significant advantages of pfSense ® software is that it can be deployed on a variety of devices. You may convert an old PC or thin client into a router or even operate it as a virtual machine with a suitable network card.

pfSense® software runs on a range of platforms, including x86 64 architectures and ARM CPUs. Because pfSense ® software is recognized for being lightweight and efficient, it does not require the most powerful hardware to function well.

The hardware requirements for pfSense ® software are determined by your use case. If you only want to operate pfSense ® software in your home network with modest traffic, you will require far less hardware power than if you want to run pfSense ® software on a business network with hundreds of users and a plethora of firewall rules and capabilities.

pfSense® software may be run as a fully functional firewall in VirtualBox or VMWare for both business and private use.

When it comes to pfSense® software hardware, there are several options currently available. While third-party appliances were formerly the only possibility, Netgate has subsequently collected its own collection of hardware appliances expressly intended to run pfSense ® software. If you want to buy a new gadget, you have several pfSense hardware alternatives, which we'll go through in this article.

The best pfSense® hardware solutions available in the market are as follows:

1. Netgate 1100
2. Protectli Vault FW4B
3. Protectli Vault 6 Port
4. Qotom Q330G4
5. MOGINSOK MGSRCJ4
6. HUNSN RS34g
7. HUNSN RS03

Figure 1. Best pfSense® Hardware for Home/SOHO/Business

tip

By easily installing and configuring Zenarmor on your pfSense hardware firewall, you have a powerful next-generation firewall to protect your home network against cyber threats. pfSense powered with Zenarmor offers home users enterprise level protection features like web filtering, application control and cloud threat intelligence.

Get Started with Zenarmor Today For Free

1. Netgate 1100

The Netgate ® 1100 security gateway equipment with pfSense ® Plus software is appropriate for home and small business networks. It may operate totally undetected on a desktop or wall due to its small form size, low power use, and silent operation. The Netgate 1100 features a Dual-core ARM Cortex-A53 1.2 GHz CPU, (3) 1 GbE ports, and 1 GB of DDR4 RAM, allowing for up to 927 Mbps routing and 607 Mbps firewall throughput.

The Netgate 1100 outperforms its widely popular predecessor, the SG-1000, in terms of pfSense ® software Plus firewall performance. With pfSense ® software Plus software, world-class price-performance, stylish packaging, and an unbeatable low price, consumer and corporate users will immediately see that this device packs a real punch.

Figure 1. Netgate 1100

Some features of Netgate 1100 hardware are listed below:

• Used For: Home / Small Business

• CPU: The Marvell ARMADA® 3720 network processing system-on-chip (SoC) is powered by a powerful, yet energy-efficient, 64-bit Marvell Cortex®-A53 ARM® processor core.

• Network Ports: (3) GbE Ethernet (WAN/LAN/OPT) ports are driven by a Marvell 88E6141 networking switch.

• Storage: 8GB EMMC storage is provided.

• Memory: 1GB DDR4 RAM, DDR4 memory provides more reliability and faster transfer rates for memory-intensive applications (such as IDS/IPS).

• Cooling: Despite its much-increased performance, the Netgate 1100's passive cooling mechanism and low power demand ensure effective thermal management and silent operation anticipated for smaller devices.

• Price: $189

The Netgate 1100 has two advantages over its competitors. First, the Netgate 1100 is pre-installed with pfSense ® software. As a result, the implementation is a lot easier. Second, the Netgate and pfSense ® software projects are inextricably linked. So, in terms of support and general compatibility, Netgate devices have a minor edge.

Netgate provides a wide range of hardware solutions that cover the whole application spectrum, from household to enterprise-level solutions. The Netgate 1100 is a low-cost device that supports pfSense ® software in its entirety.

2. Protectli Vault FW4B

The Vault is a compact form-factor PC designed to function as a firewall/router. The FW4B is built on a four-network port architecture and a low-power yet adaptable Intel Celeron J3160 CPU. This CPU supports AES-NI, Intel's Hardware Encryption Acceleration. Because the Vault is built with common Intel components (including Intel network ports), it is compatible with a wide range of operating systems, including a number of open-source firewall projects. The Vault is fanless, so there are no moving components, resulting in a very robust platform that may be utilized in less-than-ideal conditions. It's all-aluminum housing (no plastic here) acts as a massive heat sink, keeping the CPU cool.

Figure 2. Protectli Vault FW4B

Some features of Protectli Vault FW4B hardware are listed below:

• Used For: Home

• Model: FW4B

• Processor: CPU Intel Celeron J3160 (64 Bit, 1.6GHz, 4 Cores, 4 Threads, 2MB L2 Cache)

• GPU: Integrated Intel Clear Video HD Technology

• Memory and Storage: RAM 1x SO-DIMM DDR3L-1600, 1.35v, Max 8GB

• Storage: 1x mSATA SSD, Max 1 TB

• Networking: 4x Intel Gigabit Ethernet, RJ-45

• USB: 2x USB 3.0

• Wireless: Optional 802.11b/g/n WiFi Kit (Protectli P/N: WAP01K)

• CPU Fan Header: None

• Max Power: 16W

• Price: 329 Euro

The Protectli Vault FW4B is an ideal alternative for your home firewall needs. This is due to the fact that you have three network interface ports to connect to this router. So you have cable connectivity to your desktop, a Wi-Fi access point, and a backup.

Protectli provides the FW4B in both barebones and kitted-out configurations. The FW4B comes equipped with an Intel Celeron Quad-Core J3160 CPU. This variant has 4GB of sDDR3 RAM and 32GB of mSATA SSD storage. Furthermore, for encryption programs, the CPU supports Intel's Advanced Encryption Standard instruction set, AES-NI. As a result, once you've installed the operating system, you'll have adequate system resources to install pfSense ® software or any other network software.

There is no active heat dispensing mechanisms on the router. The FW4B combines a heat sink with the outside body to regulate heat. Furthermore, the gadget is rather small, measuring 115x107x39mm.

Some of the advantages of Protectli Vault FW4B hardware are given below:

• The four network interface ports are excellent for home network configurations.

• The lack of a fan aids in noise reduction.

• AES-NI provides high degrees of security.

• The barebones approach allows for configuration customization.

• Customer service in the United States is available for troubleshooting.

• Money-back guarantee for 30 days

Some of the disadvantages of Protectli Vault FW4B hardware are listed below:

• Expensive

• Installation can be difficult.

• A single-year warranty

3. Protectli Vault 6 Port

The Protectli Vault is a tiny form-factor PC that is used as a firewall micro appliance, mini PC, or router. The Vault is absolutely silent, highly compact, and can be installed anywhere thanks to its fanless design. The Vault has been tested to make sure it works well with some of the most popular open-source firewall software. pfSense ® software CE, untangle, OPNsense, VyOS, Security Onion, VyOSm, CentOS 7, *BSD, Linux, Windows, and others are all supported.

This Protectli router is designed to withstand harsh conditions. It has 6 network interface ports, making it perfect for a Small Office/Home Office arrangement. Protectli provides a good collection of system options to manage the increased number of connections.

The 6-port Protectli Vault, like the 4-port version, allows for customization. Even after you purchase RAM and storage, the barebones version saves you a significant amount of money. Alternatively, a configuration with up to 64GB DDR3 RAM and up to 960GB SSD storage is available.

Figure 3. Protectli Vault 6 Port

The 6-port model is powered by an Intel Quad-Core i5-8250U CPU (4-core, 8-thread, 6MB Cache, and up to 3.6GHz). On its alone, this appears to be a strong PC. Without a question, it is. However, a powerful device built to meet the high needs of a multi-terminal arrangement is required. As a result, the 6-port Protectli Vault is a no-brainer.

You may install pfSense ® software on any mini-PC as long as it has at least two network interface cards. If you require numerous terminals to connect to the network, you'll need to connect a switch.

Some features of Protectli Vault FW4B hardware are listed below:

• Protect your network with a small, fanless, and silent firewall. Includes US-based support and a 30-day money-back guarantee!

• Intel Quad Core Kaby Lake R i5-8250U CPU (64 bit, 1.6GHz, 3.4GHz Turbo, 6MB Smart Cache, Intel AES-NI hardware support)

• 6 Intel Gigabit Ethernet NIC ports, 4 USB 3.0 ports, 1 RJ-45 COM connector, and 1 HDMI port.

• 16GB RAM, 240GB SSD

• No operating system is pre-installed.

4. Qotom Q330G4

The Qotom Q330G4 has more than 20 different ways to set up the system. It has one of the most I/O ports so you can add more to your setup. So, you can set up the Q220G4 to be almost any kind of network device.

You get a 4th-generation Intel Core i3-4005U processor with 3MB Cache and 1.7GHz speed. You can choose a bare-bones device that you can then customize. Or, you can choose from one of the 20 different types, which range from 2GB DDR3 RAM to 8GB DDR3 RAM. When it comes to storage, the range goes from 16 GB to 64 GB. The Q330G4 has a lot of devices that cover a wide range of prices and uses. So, you have a lot of options to choose the right device.

Figure 4. * Qotom Q330G4*

Some features of Qotom Q330G4 hardware are listed below:

• Main Port: 1 HD Video Port + 1 COM + 2 USB 2.0 + 2 USB 3.0 + 4 LAN.

• CPU: Intel Core i3-4005U SOC Processor (Haswell, Dual Core, 3M Cache, 1.7GHz). Support AES-NI.

• Configuration: 4GB DDR3L RAM, 32GB mSATA SSD, NO 2.5" SATA HDD, NO WiFi, Fanless

• Use Case: Perfect fit for a LAN or WAN router, firewall, proxy, WiFi access point, VPN appliance, DHCP Server, DNS Server, etc.

• Price: $183

5. MOGINSOK MGSRCJ4

This device from MOGINSOK is a good 4-Port pfSense ® software device that runs well because it has Intel NICs. It is a good choice for people who are new to pfSense ® software because it has a wide range of connections (VGA, HDMI, and 2 USB 3.0 ports).

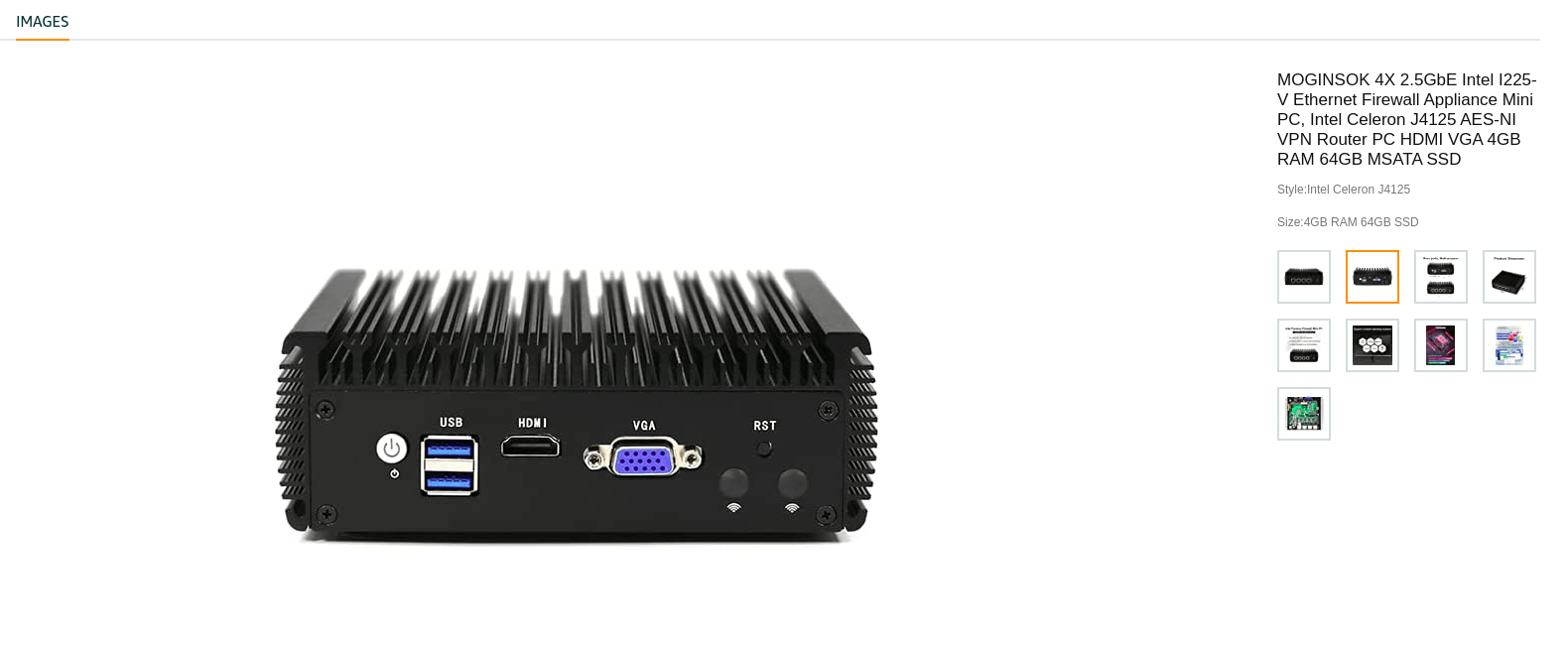

Figure 5. MOGINSOK MGSRCJ4

Some features of MOGINSOK MGSRCJ4 hardware are as follows:

• Used For: Home / Small Business / Medium-Sized Business

• Processor: Intel Celeron J4125 2.7 GHz 4-Core

• AES-NI: Yes

• RAM: 4GB DDR4 or 8GB DDR4 (Max 16GB)

• Storage: No Storage or 64GB SSD or 128GB SSD

• Ports: 4x Intel l225-V 2.5GbE, 2x USB 3.0, 1x HDMI, 1x VGA

• pfSense ® software Pre-Installed: Yes

• Cooling: Passive

The device from Moginsok has a typical design without a fan. This means that the body has heat sinks that help it get rid of heat. The aluminum body also helps get rid of heat, so you don't have to use any active cooling methods.

The advantages of MOGINSOK MGSRCJ4 hardware are as follows:

• Compatible with networks that use 2.5GbE.

• The configurations can be changed on the barebone model.

• AES-NI provides high-level security.

• Having pfSense ® software already installed makes it easier to set up.

The disadvantages of MOGINSOK MGSRCJ4 hardware are as follows:

• Only a one-year warranty.

• No help for Coreboot or BIOS flashing

• Customer service is only available by email.

6. HUNSN RS34g

It is the firewall appliance router PC with the best price. The design is small, saves space, doesn't have a fan, makes no noise, uses little power, and saves energy.

The MOGINSOK MGSRCJ4's main rival is the HUNSN RS34g. It has the same specs as the other one, but it costs less. If you need four NICs for your firewall, this might be the most affordable way to get them.

The same thing happens with the MOGINSOK MGSRCJ4. The only thing that is different here is the case. We don't have any data to back this up, but the MOGINSOK seems to be a bit more efficient when it comes to passive cooling lines. No matter which one you choose, the quality and performance should be the same.

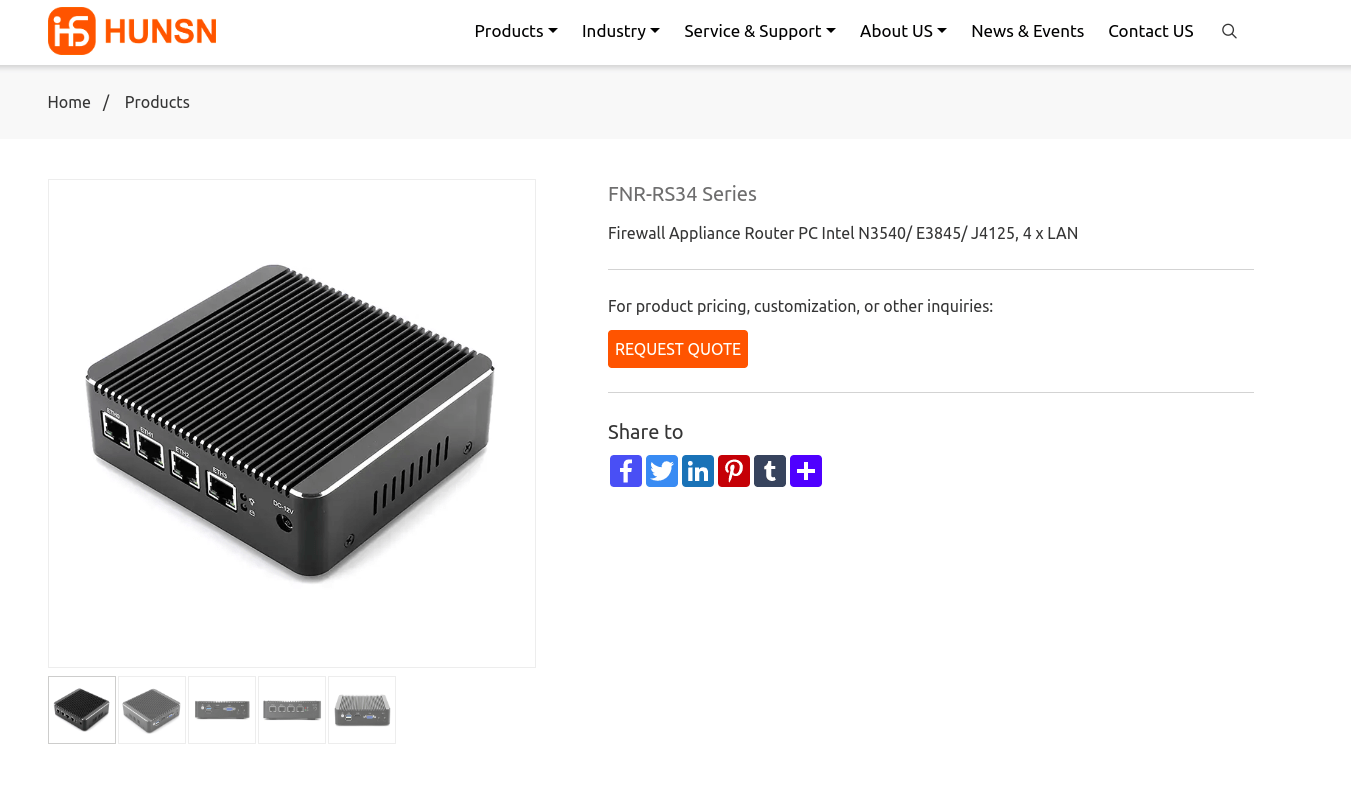

Figure 6. HUNSN RS34g

Some features of HUNSN RS34g hardware are as follows:

• Used For: Home / Small Business / Medium-Sized Business

• Processor: Intel Celeron J4125 2.7 GHz 4-Core

• AES-NI: Yes

• RAM: Options from 4GB to 16GB (Or Barebone)

• Storage: Options from 32GB SSD to 512GB SSD (Or Barebone)

• Ports: 4x Intel l225-V 2.5GbE, 2x USB 3.0, 1x HDMI, 1x VGA

• pfSense ® software Pre-Installed: No

• Cooling: Passive

The Intel Celeron J4125 Processor is in the RS34g from Hunsn (4M Cache, up to 2.70 GHz). So, it won't be hard for you to run a pfSense ® software instance. This model has 32GB SSD storage and 4GB DDR4 RAM. But this is just one of eleven pre-set specifications that Hunsn sells. When you want to build your device, you can choose the "barebones" version.

It has the usual design without a fan and uses the heat sink that is part of the outside shell. It's small, about the size of a stack of CDs, and won't take up much room on your desk. The body is made of aluminum, which makes it strong and light. Of course, you don't have to bring this thing with you everywhere. But since it doesn't come with a VESA mount, putting it on your desk could cause it to fall by accident.

The main advantages of HUNSN RS34g hardware are as listed below:

• You have a lot of options to choose from because there are a lot of devices that are already set up.

• The configurations can be changed on the barebone model.

• The lack of a fan helps keep the noise down.

• AES-NI provides high-level security.

• Compatible with networks that use 2.5GbE.

The main disadvantages of HUNSN RS34g hardware are as given below:

• Installation can be hard because you have to start from scratch with everything.

• If you flash the BIOS, the device will no longer work.

7. HUNSN RS03

The Hunsn RS03 has all of the most important features of a pfSense ® software router. The body has a mounting bracket for installing it on a server rack. So, you can put the device in the server room and easily access it from a distance. So, it's perfect for the typical network infrastructure in an office.

The Intel Celeron J4125 Processor is included (4M Cache, up to 2.70 GHz). This is the bare-bones version, so you will need to add RAM and a storage module. The device can use up to 16GB of DDR4 RAM, and you can connect an SSD to the mSATA slot. You can choose one of seven pre-configured devices that come with up to 8GB of DDR4 RAM and 512GB of storage space.

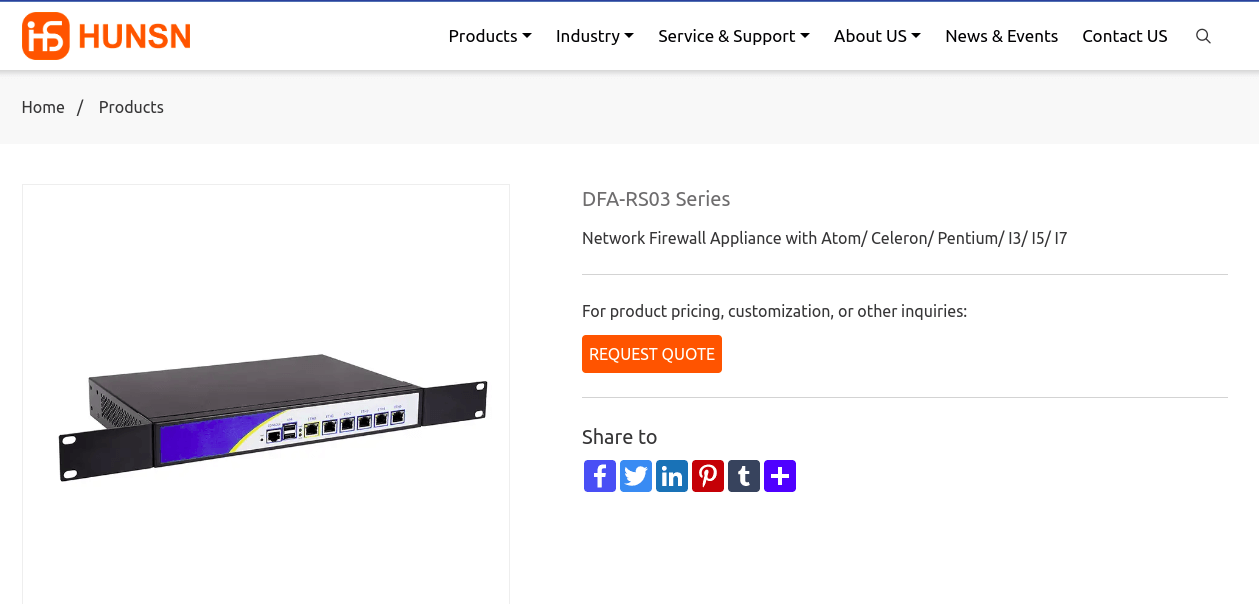

Figure 7. HUNSN RS03

Some features of HUNSN RS03 hardware are as follows:

The HUNSN RS03 is the ideal device for businesses with centralized server rooms. The form factor of the device is ideal for rack installation. Additionally, the operation of a device with multiple fans can be loud. Therefore, it is not suitable for quiet workplaces.

The benefits of HUNSN RS03 hardware are as follows:

• The configurations can be changed easily with the barebones version.

• You have a lot of options because there are different types of specifications.

• Its shape makes it perfect for server racks or room setups.

• The security levels of AES-NI are very high.

The drawbacks of HUNSN RS03 hardware are as follows:

• There is no option for 2.5G/10G Ethernet to support high-speed networks.

• Not suitable for quiet environments like offices.

What is the Best pfSense Hardware?

When purchasing a pfSense Router you should consider the following factors:

• System Particulars: To use a sophisticated network tool like pfSense, your device must meet the minimum system requirements. Consequently, it is vital to meet pfSense's minimal requirements. However, you should provide the suggested set of specs to guarantee that you have no problems when using pfSense. The recommended pfSense specs are as follows:

  • CPU with a speed of 1GHz
  • 1GB RAM and 1GB of storage

• Video Ports: The pfSense routers are independent mini-PCs. Frequently, they run an operating system. And to communicate with the operating system, you must connect a monitor to a video port. You do not need to utilize an operating system, but you must use virtualization tools to personalize your configuration.Except for the Netgate 1100, every router on our list has either an HDMI or VGA connection or both.

• Quantity and variety of network ports: The number of network ports a router provides has a direct bearing on how many devices may be connected to it. Naturally, you have the option to connect a Network Switch for bigger configurations, such as workplaces. This may be accomplished with just one or two ports. To avoid utilizing a Switch, however, home office configurations may easily make due with four to six connections. Regarding the kind, some routers include 2.5GbE ports that are compatible with high-speed networks. Therefore, you must be cautious of the port type if you want to get greater network speed.

Which pfSense Hardware is Best for Home Use?

No matter which appliance you choose, make sure you know what you need before you buy it. When picking a firewall, there are many things to think about.

You have a lot of options if you want to buy a stand-alone device or an individual NIC that will let you run pfSense ® software as a virtual machine or on old hardware. You can probably turn an old desktop computer into a router if you have one lying around. For LAN and WAN connections, you might need to buy an extra network card, but the rest of the hardware should work fine. This machine will probably use a lot more electricity than the other choices, and it will have to be on all the time.

You can also make a virtual pfSense ® software router with new or old hardware. A virtual router can be helpful in many ways, such as

• Flexibility: Snapshots make it easy to change a setting back if you make a mistake.

• Scalability: Need a router with more power? You don't have to buy new hardware; just give your virtual router more power.

• Portability: A VM is easy to move from one computer to another.

There are a lot of great and cheap options for pfSense hardware. Any of them is probably a good choice. Choose the one that works best for you.

Netgate makes good, solid options, but you can save money by going virtual or building your own hardware. pfSense ® software is a great choice for a home router no matter which way you go.

Which pfSense Hardware is Best for SOHO?

When choosing pfSense hardware for a Small Office/Home Office (SOHO) setting, it is crucial to evaluate throughput needs, VPN use, the number of simultaneous users, and price constraints.

You should verify that the hardware can accommodate your anticipated internet speed and traffic volume. For lengthy VPN use, it is advisable to utilize hardware that supports AES-NI (hardware encryption acceleration). Additionally, it is advisable to assess the required number of interfaces or Ethernet ports. Lastly, your budget and energy efficiency are important factors when selecting pfSense hardware for SOHO. Harmonize performance with cost-effectiveness and energy use.

Taking these variables into account, the Netgate 4100 provides the optimal equilibrium of performance, VPN functionality, dependability, and official support, making it the preferred option for the majority of SOHO setups.

Other suggested pfSense hardware for Small Office/Home Office (SOHO) are listed below. You may buy either a Negate appliance which is officially supported by pfSense or a third-party hardware as a DIY (Do-It-Yourself) solution.

Model	CPU	RAM	Ports	Throughput	VPN Support	Recommended For
Netgate 1100	ARM Cortex-A53 Quad-Core	1GB DDR4	3 x GbE	Up to 500 Mbps	Basic VPN	Small Home Office, Budget-Conscious
Netgate 2100	ARM Cortex-A53 Quad-Core	4GB DDR4	4 x GbE	Up to 881 Mbps	Moderate VPN	Small Office/Home Office, Small Enterprises
Netgate 4100 (Recommended)	Intel Atom C3338R Dual-Core	4GB DDR4	4 x GbE, Optional SFP	Up to 2.5 Gbps	AES-NI (Superior VPN)	Small Office/Home Office, Small Enterprises, VPN Users
Netgate 6100	Intel Atom C3558 Quad-Core	8GB DDR4	6 x GbE, Optional SFP+	Up to 10 Gbps	AES-NI (Superior VPN)	Larger Small Office/Home Office, Medium Enterprises, High VPN Demand

Table 1. Netgate Appliances for SOHO

Third-party Hardware

If you are adept at DIY configurations or favor adaptability, contemplate the subsequent hardware platforms.

1. Protectli Vault FW4B or FW6B

   • Intel Celeron J3160/J4125 processor - Options for 4GB or 8GB RAM
   • AES-NI support for VPN acceleration - Fanless design, small dimensions
   • Suitable for SOHO settings requiring modest VPN and throughput capabilities

2. Qotom Miniature Personal Computers

   • Intel architecture processors (e.g., Intel Core i3/i5, Intel Celeron J1900, J4125)
   • Several Ethernet ports (usually 4-6)
   • Support for AES-NI
   • Economical, adaptable, and space-efficient

Which pfSense Hardware is Best for Businesses?

When selecting pfSense hardware for your business, emphasize dependability, scalability, throughput, VPN performance, and official support. Businesses often exhibit elevated performance requirements, more concurrent users, VPN use, and sophisticated security measures.

You should verify that the hardware accommodates your business's internet velocity and traffic capacity. Note that hardware equipped with AES-NI acceleration is crucial for safe, high-performance VPN connections. You should evaluate gear that facilitates redundancy and high availability (HA) configurations. Another factor is scalability and ports. The hardware must include sufficient ports and extension capabilities to accommodate future development. Lastly, official support and guarantees are important for business continuity. Official Netgate devices offer professional support and guarantee, essential for commercial settings.

The Netgate 6100 or Netgate 8200 is the best pfSense hardware for businesses. They provide the optimal blend of performance, dependability, VPN functionality, scalability, and official support, making them suitable options for enterprises of diverse sizes.

Official Netgate Appliances for businesses are given below.

Model	CPU	RAM	Ports	Throughput	VPN Performance	Recommended For
Netgate 4100	Intel Atom C3338R Dual-Core	4GB DDR4	4 x GbE, Optional SFP	Up to 2.5 Gbps	Excellent (AES-NI)	Small Business, Branch Office
Netgate 6100 (Recommended)	Intel Atom C3558 Quad-Core	8GB DDR4	6 x GbE, 2 x SFP+ (10Gbps)	Up to 10 Gbps	Excellent (AES-NI)	Medium Businesses, VPN-intensive applications, Branch Offices
Netgate 8200 (Highly Recommended)		Intel Atom C3758 Octa-Core	16GB DDR4	8 x GbE, 2 x SFP+ (10Gbps)	Up to 18 Gbps	Exceptional (AES-NI)
Netgate 1541/1541 MAX	Intel Xeon D-1541 Octa-Core	16GB/32GB DDR4	2 x 10GbE SFP+, 2 x GbE, Expansion Slots	Up to 20+ Gbps	Exceptional (AES-NI)	Large Enterprises, Data Centers, High Availability

Table 2. Netgate Appliances for Businesses

Third-Party pfSense Hardware (Do-It-Yourself Solutions) for Businesses

If your business favors a customisable, do-it-yourself strategy, consider the following hardware.

1. Protectli Vault FW6E/FW6D

   • Options for Intel Core i5/i7 CPUs
   • Options for 8GB and 16GB RAM
   • AES-NI support for VPN acceleration
   • Multiple Ethernet ports, fanless architecture
   • Suitable for medium-sized enterprises requiring customisation and cost efficiency

2. Supermicro Servers

   • Equipped with Intel Xeon CPUs, ECC RAM, and designed for server-grade dependability
   • Scalable, high-performance, enterprise-level
   • Optimally suited for major enterprises, data centers, and extensive deployments

3. Dell PowerEdge R-Series Servers

   • Reliability and scalability suitable for enterprise-level applications
   • Superior performance, redundancy, and scalability
   • Appropriate for large corporations and enterprise settings

Summary of pfSense Hardware Suggestions for Businesses

The following table gives the pfSense hardware options for Businesses.

Scale of Business	Suggested Equipment
Small Business/Branch Office	Netgate 4100, Protectli Vault FW6E
Medium Business (Recommended)	Netgate 6100, Netgate 8200, Protectli Vault FW6D
Large Business/Enterprise	Netgate 8200, Netgate 1541 MAX, Supermicro/Dell Servers

Table 3. pfSense Hardware Suggestions for Businesses

What is pfSense Software?

The pfSense ® ssoftware is a FreeBSD-based operating system that can be used to install and set up a firewall. The firewall can be set up easily through the web interface and can be installed on any PC. With all the security features and business-level features that pfSense ® software has, it's hard to believe that it's free and open source.

How is pfSense Software Used?

By definition, pfSense ® software is software for building a firewall. This software can be put on any computer with at least two network interface cards. This way, you only need one interface card to get signals from your incoming line (typically from your ISP). Next, the pfSense ® software firewall software figures out what the signal means and separates the traffic that is trying to do harm. Once that's done, the second interface acts as a line for valid data signals to go out.

Which Firewall does pfSense ® Software Use?

pfSense ® software employs the packet-filtering tool, PF. PF (Packet Filter, sometimes spelled pf) is a BSD-licensed stateful packet filter and a key component of firewalling software. It is similar to the programs netfilter (iptables), ipfw, and ipfilter. PF was originally designed for OpenBSD but has now been ported to several other operating systems.

The pfSense ® software is a stateful firewall, meaning it retains information about connections running across the firewall in order to automatically permit reply traffic. This information is stored in the State Table. The connection information in the state table comprises the source, target, protocol, and ports, among other details: Sufficient to uniquely identify a link. Using this approach, just the interface where traffic enters the firewall must be authorized. When a connection meets a pass rule, the firewall populates the state table with an entry. Reply traffic to connections is automatically permitted back across the firewall by matching it against the state database, as opposed to having to verify both directions of rules. This includes any traffic connected to a separate protocol, such as ICMP control messages sent in response to a TCP, UDP, or other connection.

Is pfSense really that good?

Yes, pfSense is acknowledged as one of the best open-source firewall and router solutions. pfSense is an excellent choice for users looking for a customizable, secure, and feature-rich firewall/router solution. Here are several reasons for its popularity and esteemed reputation.

• Comprehensive Security Attributes: pfSense provides enterprise-level security functionalities, including stateful packet inspection, VPN support (IPsec and OpenVPN), and intrusion detection/prevention systems (Snort, Suricata), among others. It is extensively customizable, enabling you to adjust its security configurations to meet your particular requirements.
• Open Source: As an open-source platform, pfSense is accessible at no cost, and its source code may be examined, enhancing transparency and reliability. It possesses a substantial community of users and developers who contribute to its continuous enhancement.
• Enhanced Networking Features pfSense facilitates VLANs, load balancing, failover, traffic shaping, and Quality of Service (QoS). It accommodates intricate network configurations and is appropriate for both compact residential networks and large corporate settings.
• Usability: Notwithstanding its sophisticated functionalities, pfSense has an intuitive web interface that makes it accessible to novices. Comprehensive documentation and community assistance are readily accessible.
• Scalability: pfSense exhibits significant scalability. It is capable of operating on basic hardware for domestic purposes or being implemented on high-performance servers within data centers.
• Economical: Being free, pfSense serves as a cost-effective alternative to commercial firewall equipment. The hardware devices offered by Netgate, the company responsible for pfSense, are competitively priced.
• Expandability: pfSense accommodates a wide array of plugins and packages, including Squid for proxy services, Snort for intrusion detection, and pfBlockerNG for ad and tracker blocking.
• Dependability: pfSense is recognized for its stability and reliability, establishing it as a dependable option for essential network infrastructure.

Although pfSense is robust, it may present a steep learning curve for individuals lacking familiarity with networking principles. Secondly, hardware compatibility should be checked if you plan to run it on custom hardware.

What are the hardware requirements for pfSense?

The hardware requirements for pfSense are as follows.

• CPU: A 64-bit amd64 (x86-64) compatible CPU is required.
• RAM: A minimum of 1 GB of RAM is needed.
• Storage: At least 8 GB of free hard disk space is required.
• Network Interface: At least one compatible network interface is necessary, although having more than one is practical for most setups.
• Bootable USB Drive: A bootable USB drive with at least 1 GB of space is required for installation.

These are the minimal hardware requirements outlined for running pfSense software. However, the actual hardware needs may vary depending on the specific use case and network requirements.

What is a pfSense hardware appliance?

A pfSense hardware appliance refers to a dedicated hardware device optimized for running pfSense software. These appliances are purpose-built to provide robust firewall and routing capabilities while ensuring efficient performance and reliability. They typically come pre-installed with pfSense software, making them ready to deploy out of the box. PfSense hardware appliances may vary in specifications and form factors, catering to different network sizes and usage scenarios, ranging from home networks to small businesses and enterprises. Examples of pfSense hardware appliances include the Netgate 1100 and Protectli Vault FW4B, each offering specific features and configurations tailored to meet various network needs.

What is the hardware compatibility for pfSense?

The hardware compatibility for pfSense includes a wide range of platforms, architectures, and components. PfSense software can run on various platforms, including x86 64 architectures and ARM CPUs. It is recognized for being lightweight and efficient, allowing it to run on hardware that may not be the most powerful. The minimal hardware requirements include a 64-bit amd64 (x86-64) compatible CPU, 512 MB of RAM, 8 GB of free hard disk space, at least one compatible network interface, and a bootable USB drive with at least 1 GB of space for installation. PfSense can be deployed on different devices such as old PCs, thin clients, virtual machines, and dedicated hardware appliances, providing flexibility in hardware choice to accommodate different network setups and usage needs.

What Are the Best pfSense-Compatible NICs for High-Speed Networking?

Selecting appropriate Network Interface Cards (NICs) is essential for attaining best performance, stability, and compatibility in your pfSense firewall configuration, particularly for high-speed networking. For superior performance, reliability, and compatibility, Intel NICs are strongly recommended for the majority of pfSense implementations. For high-speed or specialized applications (10GbE+), Intel X-series, Chelsio, and Mellanox NICs provide superior performance, contingent upon meticulous verification of compatibility with your particular pfSense and FreeBSD versions.

Below are many highly recommended NIC solutions recognized for their exceptional compatibility with pfSense.

1. Intel Network Interface Cards (Strongly Endorsed): Intel NICs are universally acknowledged as the benchmark for pfSense compatibility, performance, and durability. FreeBSD, the operating system that underpins pfSense, offers robust support, ensuring exceptional driver stability and reliable performance. Suggested Intel models for pfSense are listed below.

   • Intel i350 Series (Gigabit Ethernet): Examples are Intel i350-T2 (dual-port), Intel i350-T4 (quad-port). They are suitable for small to medium-sized networks and offer exceptional dependability and little power usage.
   • Intel i210/i211 Series (Gigabit Ethernet): Examples are Intel i210-T1 (single-port), Intel i210-T2 (dual-port). They are commonly used in residential and small commercial environments. These NICs are economical, dependable, and energy-efficient.
   • Intel X520/X540 Series 10GbE Ethernet: Examples are Intel X520-DA2 (dual-port SFP+), Intel X540-T2 (dual-port RJ45). They are optimally suited for high-performance settings necessitating 10Gbps speed and offer exceptional driver assistance and dependability.
   • Intel X550/X710 Series 10 Gigabit Ethernet: Examples are Intel X550-T2 (dual-port RJ45), Intel X710-DA2 (dual-port SFP+). They are premium network interface cards appropriate for enterprise-level implementations and offer sophisticated functionalities such as SR-IOV, DPDK support, and superior driver compatibility.

2. Chelsio NICs (Recommended for High-Performance 10GbE+ Environments): Chelsio NICs provide superior performance and compatibility with FreeBSD/pfSense, especially in high-performance data centers and enterprise-grade networks. Suggested Chelsio models for pfSense are listed below.

   • Chelsio T520/T540 Series (10GbE Ethernet): Examples are Chelsio T520-CR (dual-port SFP+), T540-CR (quad-port SFP+). They are renowned for superior FreeBSD driver compatibility and reliability. These NICs are a favored option for business settings necessitating high throughput and minimal latency.

3. Mellanox Network Interface Cards (Suitable for 10GbE/25GbE/40GbE+ Environments): Mellanox adapters are recognized for high-speed networking (10GbE, 25GbE, 40GbE, and beyond) and are compatible with FreeBSD/pfSense; however, driver compatibility and stability may differ according to the exact model and firmware version. Suggested Mellanox models are Mellanox ConnectX-3/ConnectX-4 Series. For instance: ConnectX-3 MCX311A-XCAT (single-port SFP+), ConnectX-4 Lx MCX4121A-ACAT (dual-port SFP28). They are excellent performance and cost-efficiency for high-speed networks.

4. Broadcom Network Interface Cards (Variable Compatibility, Caution Advised): Broadcom NICs are sometimes used in corporate servers; however, their compatibility with pfSense/FreeBSD may be unreliable. Although certain Broadcom NIC models may operate well, others may have driver complications or performance inconsistencies.

How can I install pfSense Plus on my hardware?

While the general installation process for pfSense Plus and pfSense CE (Community Edition) shares some similarities, there are key differences to be aware of:

• It requires a separate installation image specifically for pfSense Plus, available from the Netgate Store after purchase.
• You can not go to Plus without first installing CE unless you have a Netgate device, which provides images.

Here's a general outline of the installation process for pfSense Plus:

1. Download the pfSense Plus installation image from the Netgate Store.
2. Prepare bootable media: Use a tool like Rufus or Etcher to create a bootable USB drive or prepare a virtual machine image with the downloaded installation file.
3. Boot your system from the prepared media.
4. Choose the installation destination: Select the storage device where you want to install pfSense Plus.
5. Configure network interfaces: Assign IP addresses and network settings to your network interfaces.
6. Configure additional settings (optional): Set a root password, time zone, and other desired configurations.
7. Accept the Netgate license agreement: Agree to the terms and conditions before proceeding.
8. Complete the installation: The installation process will take some time, depending on your hardware.
9. Access the web interface: Open a web browser and navigate to the IP address you assigned to the pfSense Plus web interface (typically https://192.168.1.1).
10. Log in with the default credentials: Username: "admin" and Password: "pfsense" (you should change these immediately).

How to Choose the Best pfSense Router for Your Network?

Selecting the optimal pfSense router for your network necessitates evaluating many critical variables. By meticulously assessing your network requirements and aligning them with suitable hardware specs and form factors, you may choose the optimal pfSense router for your particular needs. This is an extensive resource to assist you in making an informed decision when choosing pfSense router for your network.

• User and Device Count: Assess the quantity of concurrent users and devices to choose hardware proficient in handling your network load.
• Bandwidth and Throughput: Ascertain the highest internet speed offered by your Internet Service Provider and compute your anticipated peak use. Verify the router's capacity to manage this throughput.
• Network Services: To activate supplementary features (IDS/IPS, Squid proxy, Snort, Suricata, etc.), use hardware with increased RAM and processing capabilities.
• VPN Utilization: When using VPN services, be aware that VPN encryption considerably increases CPU workload. Select a router equipped with a robust CPU to enhance VPN performance.
• Desktop vs. Rackmount: Desktop units are streamlined and appropriate for home offices or small enterprises. Rackmount devices are suitable for data centers or corporate settings.
• Power Consumption: Evaluate energy-efficient hardware, particularly for continuously operational settings.
• Random Access Memory (RAM): Minimum recommendation is 4GB for fundamental configurations. 8GB or greater is suggested for medium to large networks or sophisticated functionalities.
• CPU Power:: For small to medium home networks: Intel Atom, Celeron, or AMD embedded CPUs are enough. For extensive networks, VPN, or complex functionalities: Intel Core i3/i5/i7 or AMD Ryzen processors are suggested.
• Network Interfaces: Select a router that has an adequate number of Ethernet ports for your WAN, LAN, and DMZ sectors. Intel NICs are strongly recommended for their dependability, performance, and interoperability.
• Storage: Solid State Drive (SSD) storage is favored for its dependability and velocity. Minimum storage capacity is 32GB; greater if considerable logging or caching is anticipated.
• Support and Guarantee: Official pfSense (Netgate) equipment often provide dependable support and warranty provisions. Custom-built hardware may possess restricted support, mostly depending on community forums and documentation.
• Official pfSense Appliances vs. Custom Hardware: Netgate provides official pfSense appliances that ensure compatibility, support, and optimal hardware. Custom-built hardware provides adaptability and financial efficiency, although requires meticulous component selection and compatibility verification.
• Budget: Optimize performance, features, and financial limitations. Premium routers provide superior performance and durability, although at an elevated cost.

Should You Buy a Prebuilt pfSense Router or Build Your Own?

When determining whether to purchase a preassembled pfSense router or construct your own, one must evaluate many considerations, including usability, support, cost, customization, and dependability. You may select a preconfigured pfSense appliance if you value user-friendliness, assured compatibility, official assistance, warranty protection, and dependability. On the other hand, you should construct your own pfSense router if you value customization, cost efficiency, upgrade adaptability, and possess the requisite technical expertise and time for self-management. Here is an analysis to assist you in selecting the optimal choice for your requirements.

Netgate offers official pfSense appliances that are specifically designed and optimized for pfSense software. Purchasing a pre-built pfSense router comes with numerous advantages, including guaranteed compatibility, ease of installation, official support and warranty, optimized hardware, and professional design.

Netgate's official hardware undergoes thorough testing and certification, ensuring reliable and consistent performance. The appliances come pre-installed and configured with pfSense, making setup as simple as plug-and-play. Additionally, Netgate provides professional support and warranty options for added peace of mind.

These devices are engineered specifically for pfSense, often delivering superior performance per watt and enhanced durability. They are generally small, silent, and suitable for residential, corporate, or rack-mounted environments.

Buying a prebuilt pfSense router has some disadvantages, like increased expense. Official appliances may incur higher costs relative to custom-built alternatives with comparable specifications. Another drawback is that hardware options are limited to certain models and configurations provided by Netgate. Lastly, the prebuilt pfSense router has upgrade limitations in contrast to DIY alternatives.

A custom-built pfSense router entails the selection of specific hardware components and their subsequent assembly by the user. Deploying a custom-built pfSense router provides the following advantages.

• Extensively Customizable: Complete authority over hardware configuration (CPU, RAM, NICs, storage) precisely aligned with your requirements.
• Economical: Frequently less expensive than official devices, particularly if suitable hardware is already possessed.
• Facile Enhancements: Simple to update individual components as your network expands or needs to evolve.
• Flexibility: Capacity to reutilize current hardware or choose specialist components for enhanced functionalities (VPN, IDS/IPS).

The primary disadvantage of a custom-built pfSense router is compatibility issues. It requires careful selection of hardware to ensure compatibility with pfSense and FreeBSD. Another drawback is reliability; DIY hardware may not undergo the same rigorous testing and optimization as certified products. Additionally, assembling, testing, and configuring a custom-built pfSense router demands more time and technical expertise. Lastly, there is no official support available, so users must rely on community forums, online documentation, and their own troubleshooting skills.

Evaluate the following situations to ascertain the optimal selection.

Situation	Proposed Solution
Home or Small Office (Plug-and-Play, User-Friendly)	Preconfigured Device
Medium Business (Professional Assistance, Dependability)	Preconfigured Device
Enterprise (Official Guarantee, Consistency)	Prebuilt Appliance
Budget-Conscious User (Cost Efficiency, Personalization)	DIY Solution
Advanced User (Personalization, Specialized Hardware)	DIY Solution
Learning and Experimentation (Practical Experience)	DIY Solution

Table 4. Prebuilt vs DIY pfSense

How do you Describe pfSense Security?

pfSense is a robust, safe, and dependable firewall and routing solution. Its security features are comprehensive, offering numerous levels of protection for networks of varying sizes. Its integration of firewall, VPN, IDS/IPS, network segmentation, secure DNS, and comprehensive logging functionalities makes it an exemplary option for safeguarding networks of varying sizes, from home offices to huge corporations. pfSense security features are as follows:

• Firewall and Stateful Packet Examination: pfSense is a robust firewall using FreeBSD's packet filtering system (pf), delivering stateful packet inspection (SPI) to monitor and manage network connections. It facilitates meticulous regulation of inbound and outbound traffic, significantly reducing vulnerability to attacks.
• Web Filtering and Proxy Services: pfSense incorporates web filtering technologies such as Squid Proxy and SquidGuard, facilitating content filtration, URL restriction, and access regulation. It augments security by obstructing access to harmful or unsuitable websites.
• Intrusion Detection and Prevention Systems (IDS/IPS): pfSense incorporates sophisticated IDS/IPS systems like Snort and Suricata, proficient in real-time threat detection and mitigation. It safeguards against identified vulnerabilities, malware, exploits, and nefarious traffic patterns.
• Virtual Private Network and Secure Remote Access: pfSense endorses secure VPN protocols such as OpenVPN, IPsec, and WireGuard, facilitating secured remote access for secure communications.
• Secure DNS and DNS Blacklisting: pfSense endorses secure DNS solutions like DNS over TLS (DoT) and DNS Resolver (Unbound), safeguarding against DNS spoofing and data interception. It facilitates DNS-based blacklisting to obstruct harmful domains and mitigate malware threats.
• Authentication and Access Control: pfSense accommodates many authentication mechanisms, such as local databases, LDAP, RADIUS, and Active Directory integration. It provides detailed user and group-specific access control for administrative interfaces and VPN connections.
• High Availability and Redundancy: pfSense facilitates CARP (Common Address Redundancy Protocol) for enhanced availability and failover, guaranteeing uninterrupted security and operational continuity. It ensures redundancy to safeguard against hardware or software malfunctions.
• Network Segmentation and VLAN Support: pfSense offers enhanced VLAN capabilities, facilitating network segmentation to segregate critical assets and diminish attack surfaces. It facilitates robust security measures via the segregation of guests, IoT, and internal networks.
• Consistent Security Updates and Engaged Community: pfSense is consistently enhanced with security updates and upgrades by the pfSense team (Netgate). It has robust community support and comprehensive documentation to assist administrators in being updated about new hazards and optimal practices.
• Transparency in Open Source: Open-source code enables security professionals and users to independently assess and validate the product for vulnerabilities.
• Documentation, Surveillance, and Accountability: pfSense provides extensive logging and monitoring capabilities, and connectivity with external SIEM systems. It offers a comprehensive analysis of network behavior, allowing anticipatory threat identification and mitigation.

Listen to this Article
