Static NAT: How Does It Work, Importance and Configuration

Published on: July 29, 2024

.

13 min read

One of the most basic concepts in networking is static network address translation or static NAT. This involves creating a fixed, one-to-one mapping between an internal private IP address and an exterior public IP address. This specific type of network address translation (NAT) guarantees that internal devices have a static public address. This is crucial for web servers and other services that rely on reliable external connectivity, such as remote access systems.

In contrast to other forms of network address translation (NAT), static NAT does not modify IP addresses in real-time. The interactions that take place within the network are guaranteed to be consistent and predictable at all times thanks to this. Concealing internal IP addresses and making it simpler to configure external access to internal resources make a significant contribution to the improvement of security.

First, a definition of static network address translation (NAT) will be provided, followed by an explanation of how it operates in greater detail. Following that, several aspects of static network address translation will be discussed. By comparing and contrasting static and dynamic network address translation (NAT), we can gain a better understanding of the benefits and drawbacks associated with each. A comprehensive set of instructions for configuring static NAT on a router will be presented, and the most common applications of static NAT will be discussed. Focusing on its role in enterprise networks and its ability to improve network security, this article will discuss the pros and cons of using static network address translation (NAT). In addition to going over the effects on network performance, we will go over the relationship between firewall rules and static network address translation (NAT). In this article, examples of common installations, a discussion of the fundamental components needed for Static NAT, and its applicability to IPv6 networks are included. It will conclude with a review of static network address translation (NAT), including its installation challenges, management tools and software, potential advantages over other forms of NAT, and best practices for deployment.

What is Static NAT?

A static NAT, also known as Network Address Translation, is a mapping that converts a private IP address to a public IP address in an exact manner. When a network device on a private network needs to be accessible from the internet, static network address translation (NAT) is an effective tool. Accessing web-facing applications in a local area network (LAN) for Internet-connected users is a common example of static network address translation (NAT) configuration on a router or firewall. When using static NAT, translations are stored in the NAT translation table as soon as the static NAT command is configured and remain there until the static NAT is removed.

How Does Static NAT Work?

Network Address Translation (NAT) is typically used on routers, which connect two networks. A router can intercept data sent from a private network to a public network and replace the source IP address with its own public IP address. The data is then transmitted from the router to the device that will receive it.

The router intercepts data sent back to it by the destination device and replaces the public IP address with the source device's original IP address. Following that, the router will send the data to the device that was the original source. Devices on both networks are able to observe this process without any interference.

How is Static NAT Different from Dynamic NAT?

Network Address Translation (NAT) can be broken down into three distinct categories, with static NAT and dynamic NAT being the two most frequently encountered variations.

A static network address translation (NAT) is a type of address translation in which an internal local IP address (also known as a private IP address) is permanently mapped to an internal global IP address (also known as a public IP address). This mapping allows the private IP address to be accessible via the internet.

Dynamic Network Address Translation (NAT), on the other hand, is a type of NAT that creates a temporary mapping between an internal local IP address (which is private) and an internal global IP address (which is public). This temporary mapping enables the private IP address to be routed over the internet for a set period of time.

Dynamic NAT makes use of a "POOL" of public IP addresses that can be dynamically assigned to internal LAN endpoints. The NAT router creates a one-to-one mapping between an inside local and an inside global address, and it changes the IP addresses of packets as they exit and enter the internal network. Dynamic NAT cannot be used to NAT servers and devices that must be accessible over the Internet. With dynamic NAT, translations are not stored in the NAT table until the router receives traffic that requires translation. Dynamic translations have a timeout, after which they are removed from the translation table.

Static NAT is less scalable due to the manual nature of its configuration and the one-to-one mapping requirement. Dynamic NAT is more scalable, as it uses address pools to manage multiple internal devices. By leveraging a pool of public IP addresses, dynamic NAT can handle a larger number of internal devices with fewer public addresses, making it more efficient and scalable for growing networks.

To summarize, Static NAT offers dependable and foreseeable IP mappings that are crucial for certain applications. However, it might lead to compatibility issues and need meticulous human configuration. Dynamic NAT is frequently a more controllable and scalable solution for bigger or more dynamic networks.

What Are the Common Use Cases for Static NAT?

One of the most common applications of static network address translation (NAT) is when there is an overlap in the RFC 1918 address space between two different organizations. Static network address translation (NAT) can be used to resolve conflicts, for example, if both organizations use the 10.x.x.x/8 range. By transforming overlapping IP addresses into locally unique addresses within each network, organizations are able to facilitate communication by utilizing commands such as ip nat outside source static and ip nat inside source static. This allows for the transformation of overlapping IP addresses into locally unique addresses. There is the possibility of resolving the issue by employing NAT to a globally unique address and exchanging routing information through BGP, or static routing.

On home networks, static network address translation (NAT) can be used to connect to smart devices or gaming consoles via the internet. Although this type of NAT is extremely popular due to the permanent mapping it creates between private and public IP addresses, it is strongly advised that it not be used in situations requiring extremely high levels of security.

If a device with a private IP address of 10.0.0.0/24 is mapped to a public IP address of 49.42.42.0/24, for example, the public IP address will remain unchanged at all times during internet access or communication over the internet. This is because the private IP address will be mapped to the public IP address. When the device engages in communication over the internet, its public IP address will be displayed as 49.42.42.0/24, and not any other address. This is because the device is connected to the internet.

How Do You Configure Static NAT on a Router?

There are a few necessary steps in configuring static NAT on a router, and this is a simple guide. Following these steps and running the provided commands will allow you to configure static NAT on a Cisco router.

To set up static NAT, map private internal IP addresses to public global addresses, like 192.168.1.2 to 100.0.0.4 and 192.168.1.3 to 100.0.0.5. Next, configure the router interfaces for NAT by assigning G0/0/0 as the inside interface and G0/0/1 as the outside interface.

1. Mapping Private Internal IP Address with Public Global Address: This step involves associating private internal IP addresses with public global addresses. For example, mapping 192.168.1.2 to 100.0.0.4 and 192.168.1.3 to 100.0.0.5. To map a private internal IP address with a public global address you may run the next command on the Cisco router:


   R1>en

   R1#conf t

   Enter configuration commands, one per line. End with CNTL/Z.

   R1(config)#ip nat inside source static 192.168.1.2 100.0.0.4

   R1(config)#ip nat inside source static 192.168.1.3 100.0.0.5


2. Setting up Router Interfaces for Network Address Translation: Designate the router interfaces as either inside or outside with respect to NAT. In this example, G0/0/0 is the inside interface, and G0/0/1 is the outside interface. For configuring router interface participating in the NAT you may run the next command on the Cisco router:


   R1(config)#int g0/0/0

   R1(config-if)#ip nat inside

   R1(config-if)#int g0/0/1

   R1(config-if)#ip nat outside


3. Perform a configuration test: To verify the NAT configuration on Cisco router, use the following command:

   R1#show ip nat translations

   This command displays the NAT translation table. Note that the fields for Outside Local and Outside Global might be empty if the server is not connected to a NAT-enabled router.

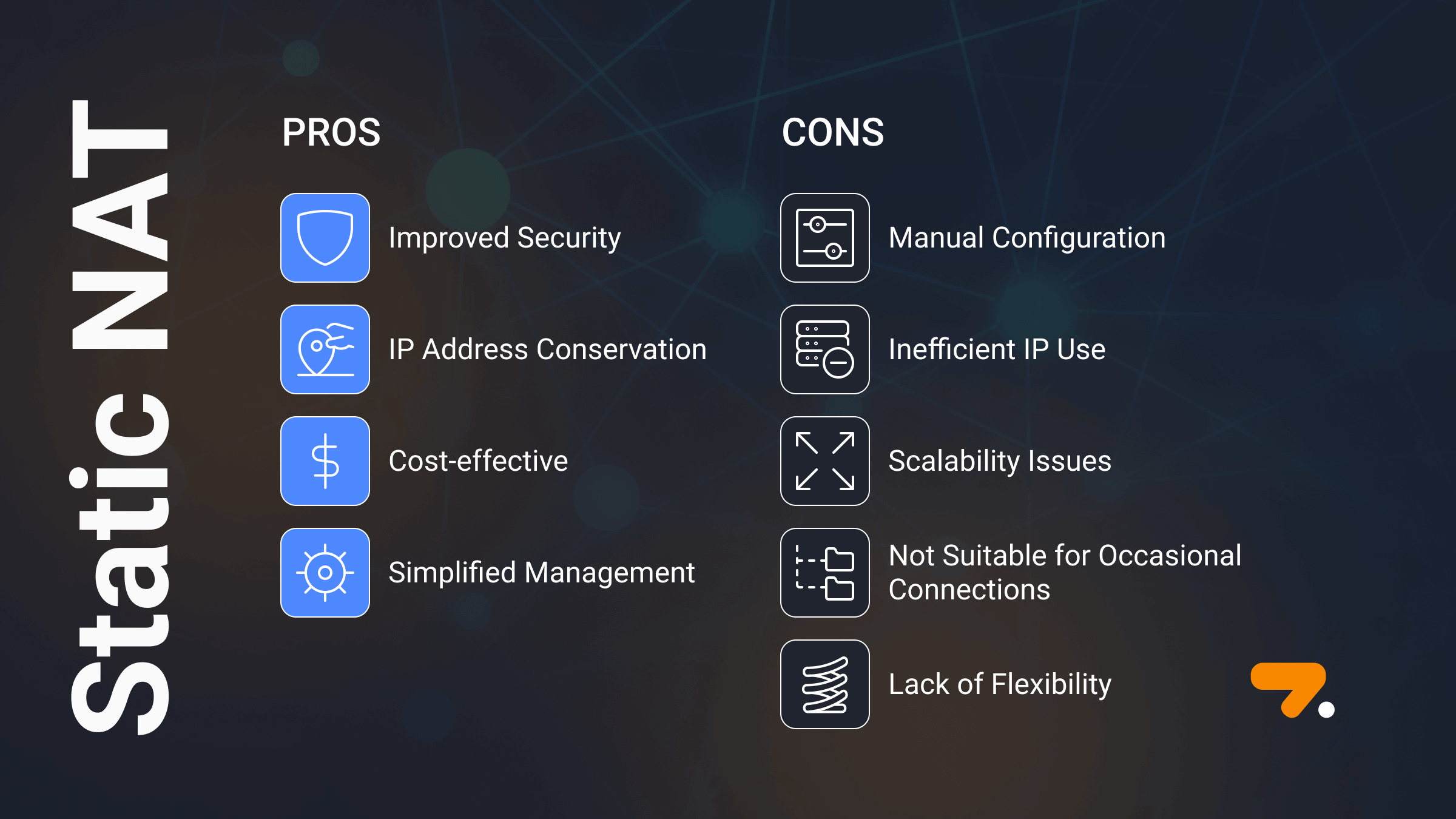

What Are the Advantages of Using Static NAT?

Static NAT offers several benefits that enhance security, optimize resource use, reduce costs, and simplify network management. The main advantages of Static NAT are outlined below:

• Improved Security: NAT hides the IP addresses of devices on a private network behind a single public address, making it difficult for hackers to identify and attack individual devices on the network. This provides an additional layer of security.

• IP Address Conservation: By using NAT, multiple devices can share a single public IP address, helping to conserve public IP addresses, which are limited resources. This reduces the demand for additional public IP addresses.

• Cost-effective: NAT allows multiple devices to connect to the internet using a single public IP address, reducing the cost of internet connectivity for small to medium-sized enterprises.

• Simplified Network Management: By using private IP addresses on internal networks, NAT simplifies network management. It makes it easier to accommodate new devices without affecting internet connectivity.

What Are the Disadvantages of Static NAT?

There are a number of drawbacks associated with static NAT, some of which include the requirement for manual configuration, the inefficient use of IP addresses, problems with scalability, and inflexibility. It can be time-consuming and prone to errors, inefficient with IP resource utilization, difficult to manage as networks grow, unsuitable for devices with sporadic connections, and less adaptable to dynamic network conditions. All of these things can make it difficult to manage networks. The main disadvantages of Static NAT are outlined below:

• Manual Configuration: It is necessary to manually configure IP addresses for each device when using static NAT, which can be a time-consuming and error-prone process of configuration. This is analogous to working as a digital waiter, as you are constantly assigning and reassigning IP addresses, which puts you at risk of duplication and network conflicts.

• Inefficient Use of IP Addresses: Each device is assigned a public IP address that is dedicated to it when using static NAT. This can result in inefficiency, particularly in situations where there are a large number of devices but a restricted number of public IP addresses. Static network address translation (NAT) does not maximize resource utilization, in contrast to dynamic NAT, which allows multiple devices to share a single IP address.

• Scalability Issues: With the expansion of the network, the management of static IP addresses becomes an increasingly difficult task. When applied to larger networks, the static NAT configuration can become cumbersome, necessitating a significant amount of administrative effort to maintain and update.

• Not Suitable for Occasional Connections: Static network address translation is not the best option for devices that connect infrequently. The assignment of a permanent public IP address to devices that only require internet access on a sporadic basis (such as guest laptops or Internet of Things devices) can result in the waste of valuable IP resources.

• Lack of Flexibility: In contrast to dynamic NAT, which automatically assigns IP addresses from a pool whenever they are required, static NAT does not offer the same degree of flexibility. A static network address translation (NAT) system is less suitable for use in dynamic environments because it does not adapt well to changing network conditions or different usage patterns.

How Does Static NAT Improve Network Security?

Static network address translation (NAT) does not inherently improve network security because it does not have the capability to filter, inspect, or block unwanted information traffic. Due to the fact that its primary function is to translate IP addresses, it has the potential to inadvertently expose internal hosts to the outside world, which could potentially increase vulnerability. Solutions that are dedicated to the protection of networks, such as firewalls and intrusion detection and prevention systems, are absolutely necessary for comprehensive network security.

As a result of masking the internal IP addresses of devices that are connected to a private network, static NAT improves network security, despite the fact that it has some limitations. As a result of this obscurity, it is more difficult for external attackers to identify and target specific devices, which provides an additional layer of protection against direct attacks on internal resources. Static network address translation (NAT) reduces the attack surface by utilizing a single public IP address for multiple devices. This is because only the address that is facing the public is exposed to the internet. Furthermore, it enables improved control and monitoring of traffic traveling into and out of the network, which contributes to the overall security measures that are in place.

Because it obscures internal IP addresses and reduces the attack surface, static NAT can be a useful component of an overall security strategy. However, it is not sufficient on its own to provide robust network security. To maintain an adequate level of protection, it is necessary to supplement it with specialized security measures such as firewalls and intrusion detection and prevention systems.

What Are the Key Components Required for Static NAT?

When it comes to setting up and managing Static NAT, which provides a one-to-one mapping between private and public IP addresses, the components that are shared below are essential. This ensures that devices on the internal network can be accessed from the internet while still maintaining security and control over the IP address mappings.

1. Private IP Addresses: These are the internal IP addresses that need to be translated to public IP addresses.

2. Public IP Addresses: These are the external IP addresses that will be used to translate the private IP addresses.

3. NAT Configuration: This involves manually configuring the mapping between the private and public IP addresses. The configuration typically includes specifying the private to public IP mapping and marking the inside and outside interfaces.

4. Inside Local Interface: This is the interface connected to the internal network, where the private IP addresses are located.

5. Inside Global Interface: This is the interface connected to the external network, where the public IP addresses are located.

6. Static NAT Command: This command is used to map the private IP address to the public IP address. For example, in Cisco routers, the command is as follows:

   ip nat inside source static [inside local ip address] [inside global ip address].

7. Verification: The NAT translations can be verified using commands such as show ip nat translations to ensure that the mappings are correctly configured and functioning as intended.

Can Static NAT be Used for IPv6 Networks?

Yes, NAT can be used to translate between IPv6 and IPv4 networks (only in routed mode). Some of the best practices for IPv6 static NAR are as follows.

• NAT66 (IPv6-to-IPv6): Although dynamic NAT and PAT are available, IPv6 addresses are so plentiful that dynamic NAT is unnecessary. If you do not want to allow returning traffic, set the static NAT rule unidirectional (manual NAT only).

• NAT46 (IPv4-to-IPv6): Because the IPv6 address space is far wider than the IPv4 address space, static translation is easily accommodated. If you do not want to allow returning traffic, set the static NAT rule unidirectional (manual NAT only). When converting to an IPv6 subnet (/96 or lower), the mapped address is by default an IPv4-embedded IPv6, with the 32-bit IPv4 address included after the IPv6 prefix. For example, if the IPv6 prefix is /96, the IPv4 address is appended to the last 32 bits. For example, if you map 192.168.1.0/24 to 201b::0/96, 192.168.1.4 will be mapped to 201b::0.192.168.1.4 (given in mixed notation). If the prefix is smaller, such as /64, the IPv4 address is inserted after the prefix, followed by a 0 suffix. You can convert addresses net-to-net, with the first IPv4 address mapping to the first IPv6 address, the second to the second, and so on.

• NAT64 (IPv6 to IPv4): You may not have enough IPv4 addresses to match the number of IPv6 addresses. We advocate utilizing a dynamic PAT pool to provide a high number of IPv4 translations.

How Does Static NAT Handle Incoming and Outgoing Traffic?

The following are the ways in which static NAT manages traffic for both incoming and outgoing connections between internal and external networks.

Incoming Traffic

In the case of traffic coming from an external network to a server or device located within the organization, the destination IP address of the incoming packet is translated from the public IP address to the private IP address of the internal server or device. This allows external users to access internal servers, such as web servers or email servers, using the public IP address, which is mapped to the private IP address of the server.

Outgoing Traffic

Outgoing traffic from an inside device to an external network is referred to as outbound traffic. The source IP address of the outgoing packet is translated from the private IP address to the public IP address mapped to that internal device. This allows internal devices to initiate connections to external hosts while hiding their private IP addresses.

Bidirectional Connectivity

The static network address translation (NAT) protocol offers bidirectional connectivity, which means that connections can be established from either side of the NAT device. The NAT device maintains the mapping between the public and private IP addresses. Packets in either direction are translated according to the configured static mapping.

One-to-One Mapping

A one-to-one mapping between public and private IP addresses is utilized by static network address translation (NAT). Each internal private IP address is mapped to a unique public IP address. No address pools are used, and the mapping is manually configured by the network administrator.

What Are the Differences Between Static NAT and Port Forwarding?

Static Network Address Translation creates a one-to-one mapping between two addresses (within and outside). This makes it possible for the inside host to send requests to the designated outside connection and get responses in return (both ways around). For instance, you wish to establish a static NAT rule and a 1:1 connection between two services or devices. You can use any of the devices to start a connection.

Port forwarding is used when a single public IP address works with several public servers. When inbound traffic needs to reach an internal service, port forwarding is commonly used. For example, suppose you want to connect to an FTP server via your private network using port 21. The router or firewall must have a port forwarding configuration for port 21, as well as the internal IP address. Someone outside your network initiates the connection in port forwarding configuration.

How Do Static NAT Rules Affect Network Performance?

Static NAT often has no influence on network speed because of its simple one-to-one mapping, which reduces processing costs. However, there are a few aspects to consider in order to avoid negatively impacting your network performance. Below is a list of potential performance impacts that could be caused by NAT.

1. Device Load: Heavy load on the NAT device can cause slight performance drops.

2. Network Congestion: Additional overhead from NAT rules can worsen network congestion.

3. Misconfigurations: Incorrect NAT rules can lead to routing issues and packet loss.

What are the Methods to Reduce NAT impact on Performance?

Some methods for minimizing the impact of NAT on performance are listed below.

1. Optimize Devices: Ensure the NAT device has sufficient processing power and memory.

2. Monitor Network: Regularly check network traffic and resource usage to spot and address bottlenecks.

3. Correct Configuration: Verify NAT rules to avoid configuration errors.

4. Hardware Offloading: Use high-end devices with hardware acceleration for better performance.

What Are Some Examples of Static NAT Configurations?

You may find some examples of static NAT configurations on the OPNsense NAT configuration tutorial and pfSense NAT guide.

These examples show how to set up static network address translation (NAT) so that external servers may always reach internal ones, how to concatenate many services into one public IP address, and how to translate between private and public IP numbers so that you can connect to the internet. The capacity to keep connections stable and predictable is crucial in a wide variety of network settings. This can be achieved by specifying these mappings of IP addresses one to one.

What Challenges Might You Encounter When Implementing Static NAT?

Static NAT, while quite beneficial, adds another level of complexity to your network infrastructure. This process is not always smooth, as certain apps and protocols may meet compatibility challenges. These challenges emerge because such applications frequently rely on determining the true source and destination of network traffic, which NAT obscures. For example, VoIP (Voice over IP) and some online gaming services may suffer from NAT, resulting in connectivity issues or poor performance.

Static NAT requires manually setting a one-to-one mapping of private and public IP addresses for each device that requires external access. While this method assures consistent external IP addresses, it can be inefficient and time-consuming. As the number of devices on your network grows, maintaining these mappings becomes more difficult and time-consuming. Every new device that needs external access entails an extra configuration step, which can soon become a considerable administrative burden.

In comparison, dynamic NAT provides a more scalable and adaptable solution for the majority of instances. Dynamic NAT allows several internal devices to share a pool of public IP addresses, with the NAT device handling address assignment automatically. This saves administrative overhead and allows for more flexibility in responding to changing network settings. Dynamic NAT is better suited for big networks when the number of devices requiring external access fluctuates or increases over time.

In summary, while Static NAT provides reliable and predictable IP mappings that are critical for some applications, it might cause compatibility concerns and necessitate rigorous manual configuration. For larger or more dynamic networks, dynamic NAT is often a more manageable and scalable solution.

What Tools and Software Can Help Manage Static NAT?

Static NAT involves manually mapping internal private IP addresses to external public IP addresses. While it offers granular control, managing it can be complex. Some examples of tools and software that can be of assistance during this process are listed below.

• Network Management Systems (NMS): NMS platforms like SolarWinds Network Performance Monitor, Cisco Network Management System (Cisco NMS), and IBM Tivoli Netcool provide a centralized view of your network infrastructure, including NAT configurations. Many NMS tools offer configuration management capabilities, allowing you to manage static NAT rules efficiently.

• Firewall and Router Configuration Interfaces: The configuration interfaces of your firewalls and routers (e.g., Cisco IOS, Juniper Junos) provide direct access to manage static NAT rules. You have precise control over NAT mappings and other network parameters.

• Configuration Management Tools: Tools like Ansible, Puppet, and Chef can automate the creation, modification, and deletion of static NAT rules.

• IP Address Management (IPAM) Tools: IPAM solutions like SolarWinds IPAM, ManageEngine NetAdvantage IPAM, and Infoblox help manage both public and private IP addresses

How Does Static NAT Interact with Firewall Rules?

How static NAT interacts with firewall rules is outlined below.

• Order of Operations: NAT rules are applied after access rule matching but before routing decisions. This means that the firewall first checks if a connection is allowed based on access rules. If allowed, NAT rules are then applied to the connection.

• Translation and Routing: The address translation done by NAT can affect how the traffic is routed. Because routing decisions are made after NAT is applied, any translated IP addresses must be considered in the routing tree to ensure proper traffic flow.

• Types of Static NAT: There are two types of Static NAT:

  1. Static Source NAT: Translates the internal IP address of a host to a different external IP address.

  2. Static Destination NAT: Translates a public IP address to a private internal IP address, allowing external hosts to initiate connections to an internal server.

• Application of NAT Rules: NAT rules are only applied to connections that are handled statefully (i.e., where the Connection Tracking option is enabled in the Access rule that allows the connection).

• Reverse NAT: Reverse NAT for reply packets is automatic, so additional rules for reply packets within a connection are not needed.

• Rule Matching: NAT rules follow the same matching criteria as other rules, with the first matching rule being applied. Any subsequent rules are ignored. To exclude certain connections from being translated, a NAT rule that specifies no translation can be created and placed above the matching rule.

• NAT in VPN Traffic: By default, NAT rules are ignored for traffic entering or leaving a VPN tunnel unless NAT is enabled in the VPN Gateway element’s properties.

• Configuration Persistence: If the Firewall Policy is installed with the "Keep Previous Configuration Definitions" option selected, previous NAT rules remain in effect until all open connections using those rules are closed, which can cause conflicts with new rules.

To summarize, static NAT influences routing paths and inbound/outbound traffic translations by being applied after access rules but before routing decisions, interacting with firewall rules. Aligning NAT rules with access rules and routing requirements requires careful placement and configuration.

Why Might an Organization Choose Static NAT Over Other NAT Types?

Static Network Address Translation (NAT) is an option that several organizations choose over dynamic or Port Address Translation (PAT) for various causes. At the outset, NAT provides a direct mapping from a private internal IP address to a public external number. Services like web servers, mail servers, and remote access services rely on having a fixed IP address. It is crucial that these services remain consistent in order to ensure that incoming requests are always delivered to the correct internal device. Statistic NAT's second perk is that it makes networks more secure by hiding their inner workings from prying eyes. This benefit, however, is shared by other NAT types as well. When only a small number of services require external access, static NAT is simpler to set up and manage. Because of this, port conflicts or address depletion are no longer a concern, and address translation becomes much simpler. To wrap things up, static NAT is great for apps that struggle with IP address management. It provides this type of system with stability and reliability. Overall, static NAT may not be the most efficient use of IP addresses compared to dynamic NAT or PAT, but it is easy to operate and provides constant address mapping, thus it is a good choice for some organizations.

What Best Practices Should Be Followed When Using Static NAT?

If you want your static NAT implementation to be a success and to keep your network safe and effective, you must follow all of the following best practices.

• Avoid dynamic NAT overlapping by ensuring that your Access Control List (ACL) for dynamic NAT does not contain any static local hosts. Conflicts that need resolving and unpredictable behavior might arise when these factors intersect. An effective way to manage access control lists (ACLs) is to keep them clear and to avoid problems that could impact the network's performance. Avoid confusion and mistakes by comparing your access control lists (ACLs) to precise designs.

• Be Wary of Using Overly Lax ACLs When Setting Up NAT, For Example: "allowed ip any any" is not a good rule to use. This may cause unforeseen consequences that could jeopardize security. Instead, to guarantee functionality and security, you should provide more detailed rules that clearly define the allowed communication. To prevent accidental or intentional unauthorized access to your network, it is crucial to be as specific as possible when defining the types of communication that are permitted.

• Use match-in-vrf for overlapping networks. The match-in-vrf keyword should be used for static NAT entries when there are instances of Virtual Routing and Forwarding (VRF) that overlap with each other. Making sure that each VRF's NAT rules are appropriately isolated from each other is one approach to prevent conflicts. Since it guarantees that the translation rules of each network stay independent and conflict-free, it is particularly important in complicated situations with many overlapping networks.

• Never reuse an inner global address across a static and dynamic NAT pool. Averting address clashes is made easier with this. Doing so increases the likelihood of major address disputes, which in turn increases the likelihood of network disruptions. It is important to regularly review your address mappings to ensure that each setting is assigned a unique value. Like making sure no two homes are located at the same street address, it is important to provide a unique number to each piece of technology to keep things organized.

• One way to create redundancy is by using the Hot Standby Router Protocol (HSRP). For redundancy purposes, this protocol is used when two separate routers are configured with the same NAT rules in order to failover. By design, HSRP allows the other router to seamlessly take over from the failed one, protecting both the network's availability and the continued operation of network address translation (NAT). This ensures that your network keeps running regularly in the case that the main power source fails, much like a backup generator.

• It is advised to use static NAT and consider making the static NAT rule unidirectional in case returning traffic is not permitted for IPv6 Network Address Translation (NAT) implementations like NAT66 (IPv6-to-IPv6) and NAT46 (IPv4-to-IPv6). In addition to ensuring optimum traffic flow, this promotes safety by controlling the direction of travel. Unidirectional and clear regulations can simplify IPv6 management and improve security, even though IPv6 itself is complicated.

• A complete familiarity with, and skill in properly configuring, the mapping of addresses between networks is critical for a successful implementation of network address translation (NAT). Assuring that every static NAT entry accurately represents any potential private-to-public IP mapping is crucial for enabling reliable and fluid communication between internal and external networks. Imagine it as an all-inclusive map where each route (or IP address) is prominently displayed and leads to the right place.
