Print Server: How It Works and Types

Published on: March 12, 2025

.

30 min read

.

For German Version

Organizing print requests from all networked devices and assigning them to the appropriate printers is done centrally by a print server. The print server seamlessly connects several PCs to a shared pool of printers by eliminating the need for separate connections and expediting the printing process.

Print servers are used by many system managers to shield their companies from printing bottlenecks and problems. Print servers, as opposed to direct IP printing to local printers, provide for resource conservation and effective control of a company's print tasks and printer fleet. By prioritizing and queuing jobs, as well as monitoring jobs and supplies, print servers reduce customer annoyance and ensure seamless operations.

Everything you need to know about the server that houses your printing device suite will be covered in this article.

• What is a Print Server?

• How does a Print Server work?

• How do Print Servers Enable Network Printing?

• How does Web Server Differ from a Print Server?

• What Hardware Allows a Printer to Connect Over a Network?

• What are the Benefits of Using a Print Server?

• What are the Different Types of Print Servers?

• How does Database Server Interact with a Print Server?

• How does Application Server Relate to Print Servers?

• How can FTP Server Work with a Print Server?

• How does File Server Complement a Print Server in a Network?

• What Protocols do Print Servers Use for Network Printing?

• How to Set Up and Configure a Print Server?

• What is the Process of Sending Print Jobs from a Print Queue?

• How to Find the Print Server Address on Your Network?

• How to Create a Print Server for a Home or Small Office?

• What is a Cloud-Based Print Server and How Does It Work?

• How does Printer Pooling Benefit Network Printing?

• How do Print Servers Manage Multiple Print Jobs?

What is a Print Server?

A print server is one piece of hardware that connects several printers to a network. In reality, a print server is a software program or network equipment that links several computers to a printer or printers to computers. In companies with more sophisticated IT infrastructures, it serves as a substitute for direct IP printing. Users can send printing tasks to the print server, which will then forward them to the appropriate printer, instead of directly connecting each printer to a specific computer. Making sure that every print job is given to the appropriate printer at the appropriate time streamlines connections, maximizes bandwidth, and lessens bottlenecks. Both small or home office (SOHO) networks and big business networks employ print servers.

There are basically two types of print servers: wired and wireless.

Wired print servers use Ethernet cables to connect printers and computing devices to a network directly. Computers, servers, and other devices on a local area network (LAN) are connected to wireless print servers via Wi-Fi.

It's important to note that many print server functions that once needed a dedicated server may now be completed by one or more networked computers or even integrated into Wi-Fi printers themselves, thanks to advancements in processing and wireless technology. However, a separate print server is still frequently required in large organizations with scattered campuses.

How does a Print Server work?

The software needed for a print server might be installed on a computer's operating system or be a component of a server, network device, or application. Network printing is managed by the software on specialized network devices or PCs. If servers are utilized, they establish a network connection with PCs, allowing them to interact with accessible printers.

A USB, parallel, or wireless connection is used to link dedicated print server devices to a printer. Usually, devices are connected to several additional printers as well as the local area network (LAN).

A computer's installed print servers are connected to a network of printers. Print servers may be integrated inside printers.

Print servers use a client-server architecture. To keep print queues under control, print servers establish direct connections with network printers. The print server is notified when a user acting as an authorized client wants to print a file. Request data, such as file and print specs, are subsequently processed by the print server. Thereafter, the request is queued and routed to a particular network printer. The designated printer then prints the files in the queued order.

Overall, print servers are a type of server that acts as a bridge between computers and printers by taking in printing jobs from computers and sending them to the right printer. To avoid overtaxing a busy printing device, they achieve this by locally storing and queuing print requests.

In its most basic form, a print server functions as follows:

1. Sending print job: The user submits a print job by clicking the "Print" button after choosing the printer they want to use. In more complicated setups, they could only pick the server.

2. Adding job to a queue: After the print job is sent from the user's PC to the print server via the network, the print server chooses the relevant printer and adds it to the printer's queue.

3. Awaiting the printer's availability is the print server: The print server monitors the status of each accessible printer and sends the job to the selected printer when it becomes available.

4. Printing the job: The printer creates the document once it has received the print job.

How do Print Servers Enable Network Printing?

With the help of print servers, your IT staff can monitor, update, and configure any printer on the network from a single place. Print servers consolidate print management into a single system. The IT department assumes responsibility instead of dispersed end users, which lowers the likelihood of user mistakes. All print settings, including task processing and prioritizing, print rules like color or watermarks, and even the removal of jobs that don't fit print requirements, are managed by the system administrator.

Print server solutions scale effectively as businesses expand, in contrast to direct printing. As needed, you may add new users, change print rights, and adjust group settings. A server may manage a higher print demand by allocating or prioritizing tasks to avoid backlogs, as opposed to users sending jobs to the same printer separately. Even distant servers can connect to Tricerat's servers via WAN.

Print servers queue up and expedite the processing of print tasks by prioritizing them based on user or department needs. This guarantees that urgent documents are produced on time and helps prevent printer overload. Therefore, more sophisticated print settings like load balancing, print quotas, and print job priority are made possible by print servers. This enhances the efficiency of your print environment.

How does Web Server Differ from a Print Server?

A web server is the server responsible for publishing a website on the internet. In contrast, a print server is a computer, network device, or software application that controls print requests and gives network administrators and end users information about the state of the printer queue.

While a print server handles client print requests and routes them to the relevant printers, a web server hosts websites and serves web pages to users over HTTP or HTTPS.

After processing a user's request for a webpage, the web server delivers the relevant HTML, CSS, and JavaScript files to the user's browser. In contrast, a print server may queue print tasks, control printer sharing across users, and offer print job progress updates. It lessens the necessity for every user to establish a direct connection with a printer.

Examples of web servers include Apache, Nginx, and Microsoft IIS, whereas examples of print servers include CUPS (Common UNIX Printing System) and Windows Print Server.

Web server's common use cases include website hosting, web applications, and APIs. In contrast, the usual print server use cases are network printing, print job management, and cost management.

What Hardware Allows a Printer to Connect Over a Network?

To facilitate a printer's network connectivity, the following hardware components are often necessary:

• Network Interface Card (NIC): The majority of contemporary printers are equipped with an integrated Ethernet port or wireless adapter, functioning as the NIC. This enables the printer to establish a direct connection to a wired or wireless network.

• Wireless Adapter: Printers may possess an internal Wi-Fi module for wireless communication or need an extra USB Wi-Fi adapter to access a wireless network.

• USB-to-Network Adapter: For legacy printers without integrated network functionality, a USB-to-Ethernet or USB-to-Wi-Fi adapter may be used to provide network communication.

• Network Switch/Router: A network router or switch is crucial for overseeing and enabling communication between the printer and other devices on the network.

• Print Server: A print server is a hardware or integrated function that links a printer to a network, allowing numerous users to use it. This may function as an independent hardware device or be included into the printer itself.

These components provide the easy integration of the printer onto a local area network (LAN) for collective access.

What are the Benefits of Using a Print Server?

Network printing necessitates particular hardware or software items that function as servers for your on-site or network printer range, in contrast to straight IP printing, which may not require a dedicated server.

The features of standard operating system printers are complemented by the many advantages of print servers. The main advantages of print servers are as follows.

• Centralized administration: This method ensures a centralized approach to managing the company's print requests, enabling IT managers to monitor printer condition, manage printing preferences, and stay up-to-date with software updates to prevent or resolve bottlenecks before they worsen.

  Instead of needing to examine every device in your fleet by hand. System administrators may examine and handle all outstanding print jobs if necessary thanks to the print server's centralization of queue management and access restriction for security reasons.

• Enhanced Productivity: By handling several print jobs concurrently, it cuts down on wait times and guarantees that papers are produced on schedule. Workflow is improved, and less manual intervention is required when print servers intelligently route print jobs to the right printers based on location and status.

• Strong, committed hardware: A print server's sole responsibility is to oversee your print infrastructure. Your printers are solely taken care of by their strong processors. This gives your office access to high availability and excellent printing speeds.

• Economical: It lessens the need to buy and maintain several separate printers by allowing you to manage them all from a single location. This lowers expenses and makes maintenance easier.

• Handles any print complexity: Print servers are capable of managing whatever complexity you throw at them in the workplace. Permissions, settings, policies, new users, etc. Your print server will take care of any issue that has to be resolved in your print environment.

• Safety: It protects critical printers and stops unwanted access by enabling users or groups to specify access restrictions. In order to help identify abuse and guarantee adherence to data protection laws, the print server monitors and records print jobs.

• Scalability: Print servers help you keep up with the expansion of your business by allowing you to add and remove users, adjust print permissions, and manage an increasing print load that can be directed toward a single printer, even when direct printing isn't scalable.

What are the Different Types of Print Servers?

The types of print servers are listed below.

1. Wi-Fi/WLAN print server: A physical device called a wireless print server uses no wires to link your printer to the network. Usually, it connects to the printer's USB port. If you are unable to run wires throughout your home or office, we recommend wireless print servers. They are perfect for situations where multiple people need to print from different devices because they enable wireless printer sharing.

2. Ethernet Print Server: A physical device called an Ethernet print server connects your printer to the network via connections. It contains one or more ports that you may use to connect the printer with an Ethernet connection, and it connects into an electrical outlet. If you want to guarantee a quicker and more dependable connection between the printer and the network, Ethernet print servers are advised.

3. Print Server Software: Installing a program on a computer that allows it to function as a server for one or more printers is known as a software print server. If you wish to use an existing computer as a server for your printer or printers, software print servers are advised.

4. Windows Print Server: A Windows print server is a machine that runs the Windows operating system and gives users access to the required printing drivers. In addition, it provides auditing and security services for printer access.

5. Linux Print Server: With CUPS (Common UNIX Printing Technology), a modular open source printing technology, Linux PCs may be transformed into print servers. User terminal print jobs are received by a Linux print server, which then processes them and makes sure they are sent to a printer that is available.

6. Cloud Print Server: A cloud print server eliminates the need for printer drivers and other hardware by connecting various terminal types, from mobile devices to laptops and workstations to printers, through the cloud.

7. Virtual Print Server: The server software for a virtual print server operates on a virtual machine or on an existing physical server. Virtual print servers may be readily expanded to accommodate large print volumes due to the ease of deployment of virtual servers. This makes it possible for print management in network environments, from tiny offices to giant corporations, to be effective and adaptable.

How does Database Server Interact with a Print Server?

Large volumes of digital data may be easily stored, arranged, and maintained with the help of database servers. Numerous businesses keep vast volumes of data, including customer information, operational procedures, and financial data, on their networks or computer devices.

A database server and a print server collaborate in situations when printing operations need data from the database. The standard procedure for the database server and print server interaction is given below.

• Data Retrieval: The database server retains and administers structured data. When a user or application initiates a print job using this data (e.g., invoices, reports, labels), the program asks the database server to get the necessary information.

• Application Layer: A mediating application or service links the database server with the print server. This program organizes the acquired data into a printed document (e.g., PDF, Excel, or other formats) using templates or established designs.

• Print Job Submission: Upon document generation, it is sent to the print server. The print server administers and organizes the print job, routing it to the designated printer.

• Communication Protocols: The interface is controlled by communication protocols. For example, SQL queries are used to access databases, and standard printing protocols (like IPP and LPD) are used to send jobs to the print server.

This interaction guarantees efficient printing of data-centric documents while preserving centralized data storage and print oversight.

How does Application Server Relate to Print Servers?

An application server and a print server provide distinct roles within a network environment, however they may be integrated based on the system design.

An application server is designed to host and execute applications, delivering services such as data processing, business logic execution, and database interaction to end-users or other systems. It often functions as an intermediary layer between clients (such as web browsers) and backend resources (such as databases).

A print server oversees print tasks and regulates printers across a network. It organizes print requests, administers printer drivers, and optimizes the use of printing resources. On the other hand, the application server serves as the central system overseeing user and account data, as well as determining print job processing, effectively functioning as the 'brain' of print operations.

The link between the two emerges when programs hosted on an application server need the generation of printed outputs. For example:

• An enterprise application operating on an application server may enable users to produce reports or invoices. The papers may be sent to a print server for printing purposes.

• The application server interacts with the print server via protocols such as IPP (Internet Printing Protocol) or SMB.

• The application server processes data and produces output, while the print server manages the actual printing of that result.

The application server and print server collaborate, with the application server managing print settings and history, while the print server executes print jobs and manages queues.

How can FTP Server Work with a Print Server?

An FTP server and a print server may collaborate by enabling the transmission of print jobs or documents for printing. This is how they may cooperate:

• File Upload using FTP: The FTP server enables users to upload documents for printing. Users may access the FTP server using an FTP client, authenticate, and transfer the print job to a specified directory.

• Integration with Print Server: The print server supervises the specified directory on the FTP server for newly added files. Upon detection of a file, the print server acquires and processes it as a print job.

• Automation: Scripts or software may facilitate the transmission of files from the FTP server to the print server. The print server may routinely verify for new files or be set to begin printing immediately upon file upload.

• File Format Compatibility: Verify that the uploaded files are in a printer-supported format (e.g., PDF, DOCX). The print server may further have conversion tools if required.

This configuration is advantageous in settings where distant users need secure and quick transmission of print jobs.

How does File Server Complement a Print Server in a Network?

A computer called a file server is in charge of managing and storing data files so that other computers connected to the same network may access them. It makes it possible for people to exchange data across a network without transferring files in person.

The file server acts as a central point for storing and sharing files for a network by assuming the function of a computer or server to store and make data BLOBs available to clients. They may be accessible to the internet or restricted to a particular local area network (LAN).

The unique type of server that houses every printer on a network is called a print server. This server gives users control over which printers they may access at any moment as long as they are connected to the network. The idea behind an office network is usually to designate default printers for specific employee groups. However, due to a fast-paced and adaptable work environment, occasionally, a printer breaks down or needs maintenance. In an office network, this type of scenario is normal. Thus, in such a scenario, Print Server contributes significantly and becomes quite helpful. Employees in an office network can utilize it to use a different printer that is particularly close to their cubicles. To provide each printer with an equal workload and create a quicker and more efficient working environment, print servers may split up the printing queues of all the printers connected to a network. Therefore, by avoiding printing overload for a particular printer, a print server that has this functionality can actually help each printer last longer.

There are several benefits to having a file server and a print server on the same network. A file server without a print server is uncommon in office networks. Their uses are related to one another, according to the definition given above. If numerous files need to be saved on a file server, it is reasonable to expect that there will be many files that need to be printed and examined. So, having both file servers and print servers is simply sensible. However, having a file server does not always imply the necessity for a print server, such as in a home network with only one or two printers or any other network. If there are too few printers, having a print server is impractical. To summarize, having both a file server and a print server within a network is situational.

What Protocols do Print Servers Use for Network Printing?

Communication between computers and printers is governed by a set of rules and standards called printing protocols. They are required to ensure that print jobs are transmitted and received accurately.

While there are a number of printing protocols in use today, the following are the most popular ones:

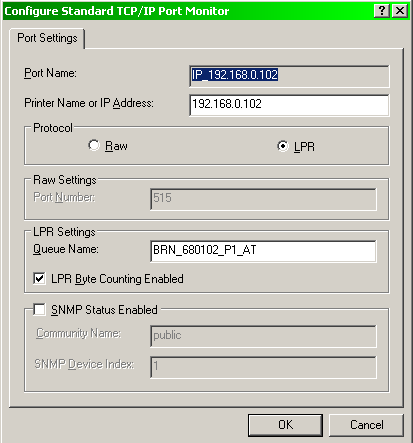

• Line Printer Remote (LPR): Originally developed for Unix systems, LPR is an antiquated protocol. Many individuals continue to follow this simple routine today. LPR works by simultaneously transmitting the whole print job to the printer. LPR may, therefore be slow, especially for jobs that need a lot of work.

• Internet Printing Protocol (IPP): IPP is a more modern protocol that is based on HTTP. Despite being a more complex protocol than LPR, it offers a number of advantages, including the capacity to track and terminate operations. IPP is the suggested protocol for new printers and is becoming more and more prevalent.

• Server Message Block/Common Internet File System (SMB/CIFS): SMB/CIFS is a network file-sharing technology that enables printing on Windows networks. Despite being a simple and easy-to-use protocol, SMB/CIFS is not as strong as LPR or IPP.

• JetDirect: The proprietary JetDirect protocol was developed by HP. It is a standard protocol for HP printers, although it is not as widely supported as LPR or IPP.

• TCP/IP: TCP/IP is the most popular network protocol in the world. Printing is only one of the many network functions that it is used for. For printing across wired and wireless networks, TCP/IP is a reliable protocol.

What are the wireless protocols for network printing?

Wireless devices are the target of wireless protocols. One type of printing protocol and zero-configuration networking (zeroconf) methods serve as the foundation for this type of protocol. In this manner, wireless devices may easily use printers. Keep in mind that a wireless printer is not required.

Apple Inc.'s macOS and iOS operating systems have a function called AirPrint that allows printing via a wireless local area network (Wi-Fi), either directly to printers that support AirPrint or to shared printers that don't, via a computer running Linux, macOS, or Microsoft Windows. Internet Printing Protocol (IPP) and mDNS (Bonjour, in particular) provide the foundation of AirPrint. It needed a Wi-Fi access point because it was first designed for iOS devices and linked solely over a Wi-Fi network. But in 2012, AirPrint was added to the macOS desktop platform, allowing Macs that were connected to the network via Ethernet to print using the AirPrint protocol, as well as those that were connected via Wi-Fi.

The Mopria Alliance offers a protocol that Windows 10 and Android both use. It employs mDNS for service discovery and Internet Printing Protocol (IPP) for printing, same as AirPrint.

Windows devices print using either JetDirect (RAW) or the Line Printer Daemon protocol (LPR), while Web Services for Devices (WSD) is used for service discovery. The Mopria Alliance's method is likewise supported by Windows 10.

How to Set Up and Configure a Print Server?

You may lessen the strain on a computer by accelerating print activities by configuring a print server on the network. You may install the printer driver in Windows via the print server to avoid the hassle of downloading it to every computer on the network or using a CD/DVD-ROM.

In order to set up a print server, first allow the server to print from the computer, and then set up the printer sharing configuration.

Utilizing print server on Windows

The PC that will function as the print server must have administrator rights. Verify the 32- or 64-bit operating systems of the computer that will act as the print server and the client, which is the machine that will utilize the print server. Looking at the Computer's System Information

1. Use an administrator account to log in to the machine that will function as the print server.

2. Start > Settings > Devices > Printers & scanners should be clicked. It shows the printers & scanners interface.

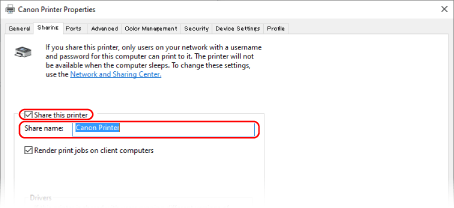

3. Click Manage > Printer properties to access the machine's printer driver. It shows the printer driver properties screen.

4. Choose the Share this printer checkbox on the Sharing tab, then provide a shared name.

5. If necessary, install an extra driver. Install a different driver if the client computer's operating system (32-bit or 64-bit) is different from the print server's.

6. Press OK.

The configurations are used.

Utilizing print server on macOS

1. Select Sharing > System Preferences. It shows the Sharing screen.

2. Check the option for Printer Sharing.

3. Choose the machine's checkbox under Printers.

4. If necessary, limit who has access to the print server. By default, the print server is accessible to all users. Click [+] under [Users] and choose which users are allowed to use the print server to allow them to do so.

5. The Sharing screen should be closed. The configurations are used.

The operating system being used determines how the print server is configured. We focus on Windows because it is the system used by the majority of businesses. By default, Windows Servers are set up for TCP/IP and Microsoft networks. The server version determines what you do next. Generally speaking, though, you should select "Configure Server Wizard," then "Print Server," and finally "Printers and printer drivers." You can add or remove a local printer at this point.

What is the Process of Sending Print Jobs from a Print Queue?

When you send a document to print, it enters a queue of other print jobs awaiting their turn. The queue keeps each task until the printer is ready to handle it, ensuring that the papers appear in the correct sequence.

The First-In, First-Out (FIFO) concept is an essential feature of a queue. This means that the first item put in the queue is the first to be processed or deleted. This principle is especially essential in print queues because the first task added to the queue should be printed first.

When a user submits a print job, it is added to the queue. The printer then processes the jobs in the sequence in which they were added, making sure that the first task supplied gets printed first. This FIFO behavior assures fairness and keeps the print jobs in the correct sequence, avoiding any work from being skipped or prioritized over others. This guarantees that the page order is preserved.

How to Find the Print Server Address on Your Network?

To troubleshoot technical difficulties with your printer, you will need to know its IP address. Knowing your printer's IP address will allow you to establish a private connection with it and join it to your Wi-Fi network. Here are several methods you may use to locate your printer's IP address, depending on the type of printer and computer you have.

Print the Network Configuration Page

To learn your print server IP address by printing the network configuration page, you may follow the next steps.

1. Open the printer's Control Panel.

2. Navigate to Settings.

3. Click Wireless Settings.

4. Print a document named Network Configuration, which will provide your printer's IP address.

On Windows

To learn your print server IP address on Windows, you may follow the next steps.

1. Launch your computer's Control Panel.

2. Open Hardware and Sound.

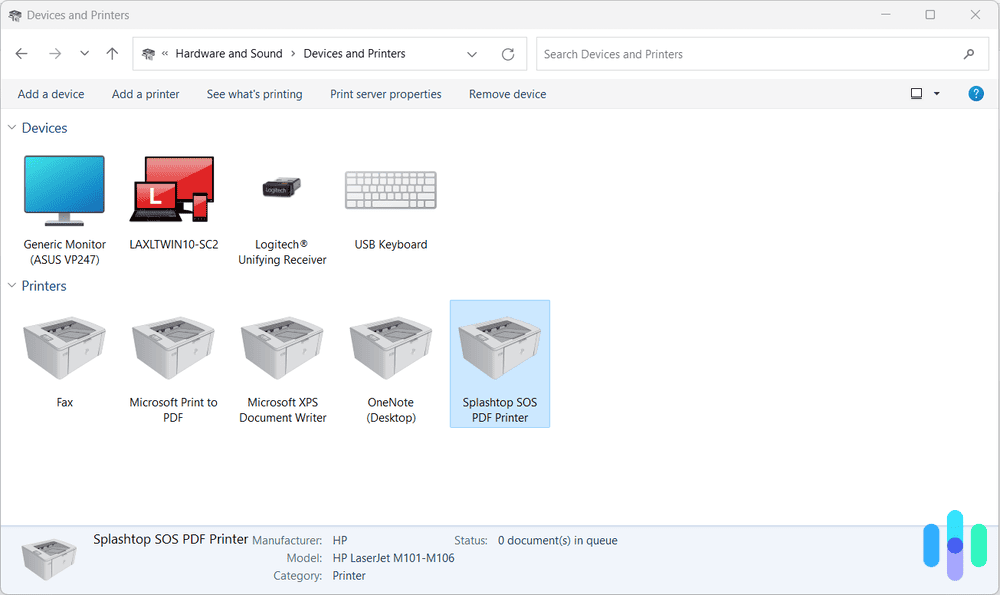

3. Open Devices and Printers.

4. Right-click the printer and choose Properties.

5. If three tabs appear, locate your IP address under the Web Services tab.

6. If five tabs appear, locate your IP address under the Ports tab.

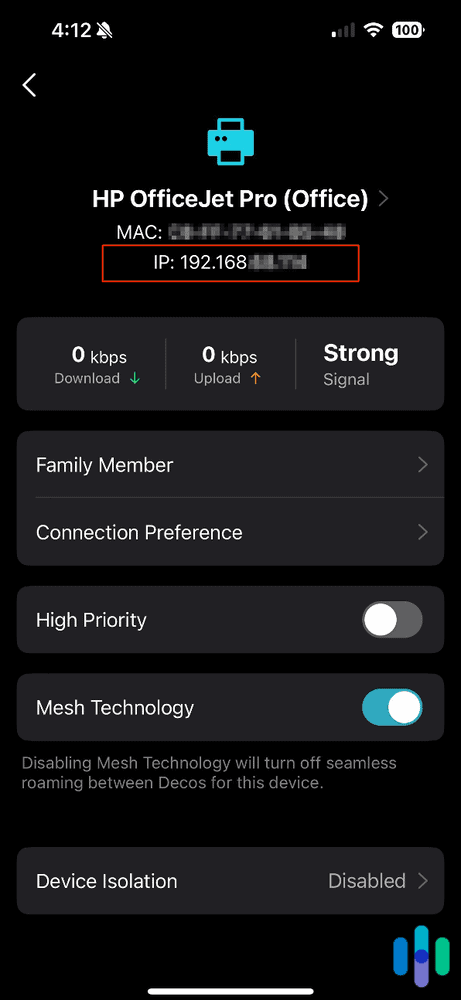

On the Router

To learn your print server IP address on a router, you may follow the next steps.

1. Make sure you have access to your router.

2. Enter your router's IP address into the address bar of any web browser.

3. Enter your router's username and password.

4. Locate the DHCP Client Table or List.

5. Open the Client List or DHCP Client Table.

6. Click on your printer to see its IP address.

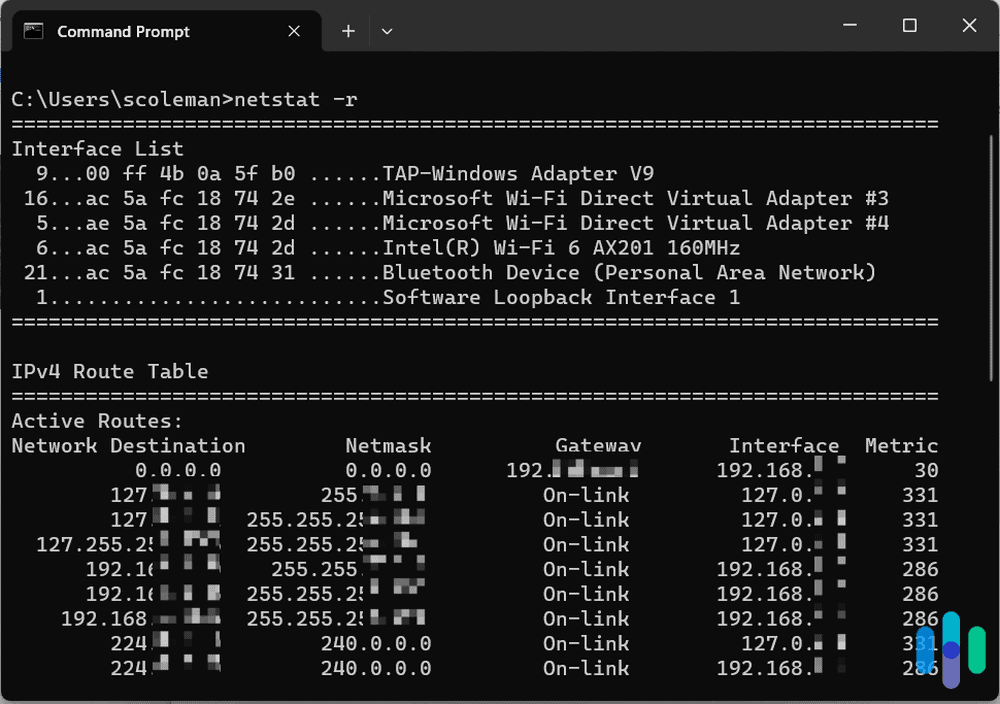

Use the Command Prompt

To learn your print server IP address on the Windows command prompt, you may follow the next steps.

1. Press the Windows key.

2. Type cmd.

3. Type netstat -r.

4. Press Enter.

A list of devices linked to your computer should appear, including your printer's IP address.

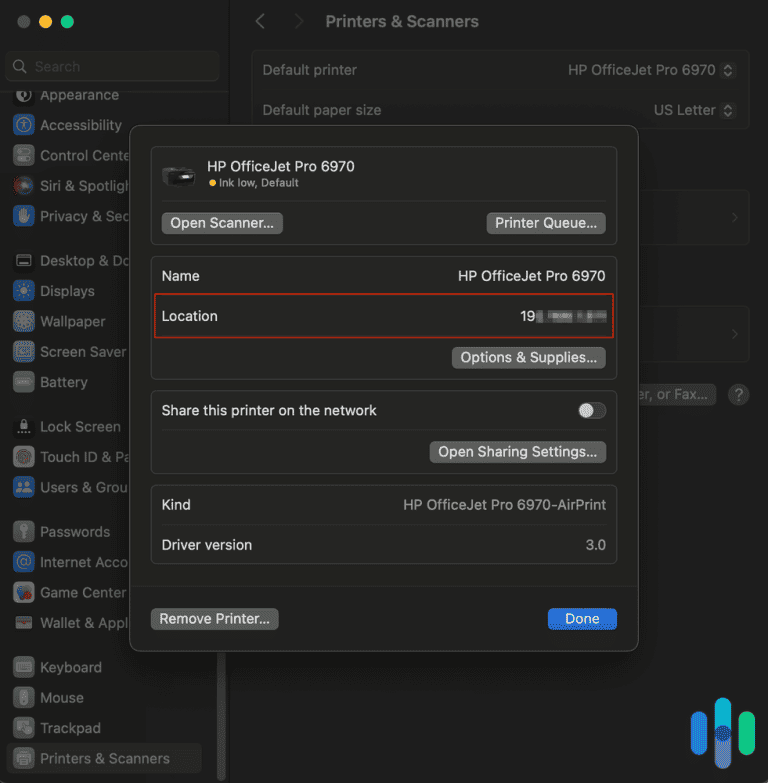

On macOS

To learn your print server IP address on macOS, you may follow the next steps.

1. Enter System Settings.

2. Select Printers & Scanners.

3. Click on your printer.

4. Your printer's IP address should appear under Location.

From an HP printer

To learn your print server IP address on HP Printer, you may follow the next steps.

1. Open the HP Smart app or visit hpsmart.com.

2. Click Printer Settings.

3. Click Printer Reports under the Tools menu.

4. Click Network Configuration.

5. The printer will produce a network configuration sheet, which should include your IP address. It will be included in the IPv4 category.

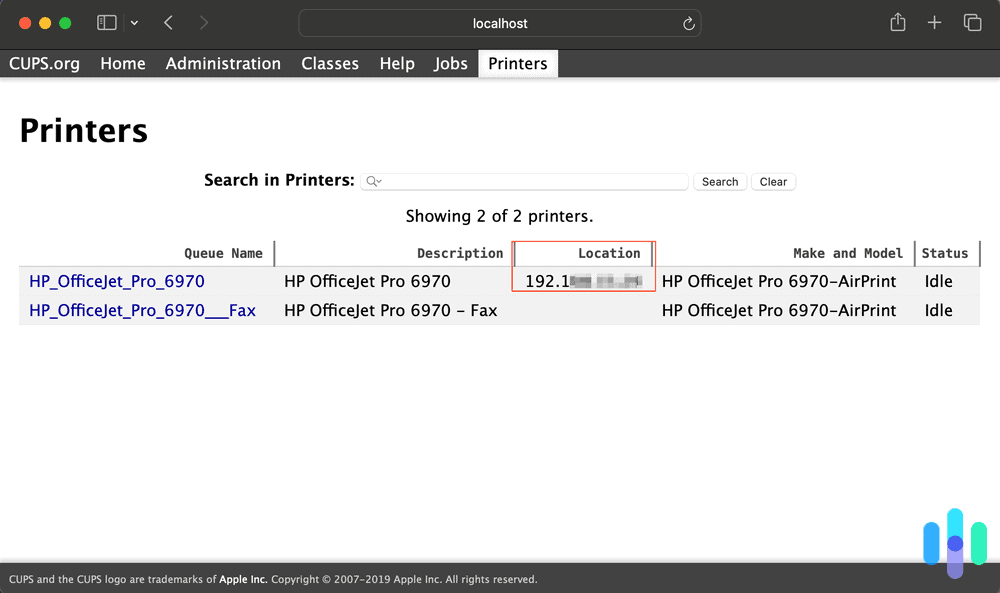

From the CUPS Website (Mac Computers).

To learn your print server IP address on CUPS website, you may follow the next steps.

1. Open the Applications folder in Finder.

2. Click on the Utilities folder.

3. Open the Terminal application.

4. Enter cupsctl WebInterface=yes.

5. Press Enter.

6. Open Safari.

7. Copy and paste the URL localhost:631/printers into your browser.

8. You can discover your printer's IP address under the Location section.

On Chromebook

To learn your print server IP address on Chromebook, you may follow the next steps.

1. Open the Settings menu.

2. Click on Advanced.

3. Under Printers, choose Save Available Printers.

4. Select your printer from the list of saved printers and right-click.

5. Select Set Up.

6. Click Model.

7. Click Label.

8. Click Add.

9. Under Printer Information, you should now see your printer's IP address.

From Canon printer

To learn your print server IP address on Canon printer, you may follow the next steps.

1. On your printer, locate and click Settings and Adjustments.

2. Select Set or Adjust Menu.

3. Click OK.

4. Expand the IP Addresses Menu.

5. Select Interface Setup.

6. Select TCP/IP.

7. Open the next tab.

8. Choose IPv4 Settings.

9. A box should appear containing the IP address of your Canon printer.

How to Create a Print Server for a Home or Small Office?

The most basic printer arrangement consists of a computer delivering print jobs to a directly connected printer. When you migrate to a networked environment, you'll need a "print server" to receive jobs from various places (computers) via network protocols and route them to the appropriate other site (the printer) on the network. A typical printer does not know how to achieve this. Therefore, you must employ one of three methods:

1. Use a router that includes a built-in print server. Here, the router serves as the print server.

2. Use a printer that is network-capable. In this case, the printer functions as the print server.

Option 1: Router with an integrated print server

In this situation, the printer is linked to the network using a USB connection or a parallel printer cable, depending on which is supported by the router and printer. A router's USB or parallel printer port distinguishes it in this context.

Wired routers are simpler to find than wireless routers. Furthermore, wireless routers with print servers are significantly more expensive (2-4 times the cost of a regular network), so do your study to select a reliable one.

Option 2: Network printer

Compared to routers with integrated print servers, network-capable printers are simpler to locate. Model numbers for network-capable printers occasionally terminate in "N," such as the Samsung CLP-300N rather than the standard Samsung CLP-300. The unique feature of a network-capable printer is that it is treated by the router just like any other network location. For example, if your printer supports only a wired connection, you would use the same type of cable as a computer to connect it to the router.

Option 2 is usually more reliable than option 1. Put simply, the print server aspect in option 2. is catered to the printer in question.

Option 3: Adding the printer to the client PCs

Options 1 and 2 employ the same principle: you install a printer on each client computer as if it were a regular printer, but you use the TCP/IP port.

First, locate the printer's IP address. If you use a router with a built-in print server (option 1), the printer's IP address is the same as the router's. If you are using a network-capable printer (option 2), log in to your router (see to your router's handbook for instructions) and locate the printer in the "DHCP", "Client list", or similar page. If your router includes a "static IP" option that allows you to give fixed internal IP addresses to MAC addresses, make sure to activate it so that the printer always has the same IP address.

Next, download your printer's drivers from the manufacturer's website or prepare the installation DVD. This should be done for each computer to which the printer has not yet been installed. Some printer instructions direct you to download bloated management software (for example, the Brother 685CW documentation instructed me to install an 80mb package rather than merely the drivers), although this is typically unnecessary.

Next, add the printer as normal. In Windows, the procedure is as follows:

1. From the Start menu, select Settings > Control Panel > Printers and Faxes > Add Printer.

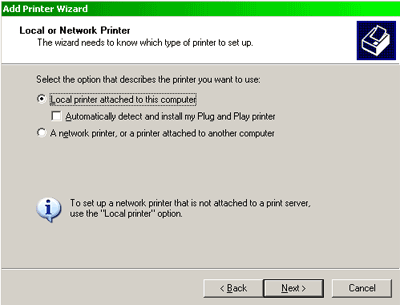

2. Pick "local printer attached to this computer" and uncheck the option marked "Automatically detect and install my plug-and-play printer.".

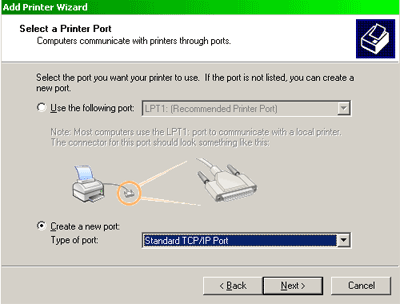

3. You should then be prompted to pick a port. Select to create a new port of the "Standard TCP / IP" type.

4. In the TCP/IP wizard that appears, enter the IP address you already specified for the router (option 1) or printer (option 2). The "Port Name" can be whatever you desire.

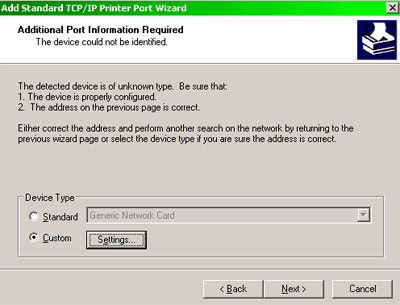

5. The operating system may then automatically identify the proper settings for that port. Otherwise, you will have to enter the settings yourself. Click the "Settings..." button after selecting "Custom" device type.

6. If your network (option 1) or printer (option 2) has instructions for port settings, carefully follow them. Here are some settings for the many printers and combinations.

   Samsung SCX-4100 linked via a parallel printer cord to my wired router with a built-in print server (option 1).

   The Brother 7820N linked to the router via a regular network cable (option 2). (Note: The numbers "680102" were the final six digits of the printer's IP address, according to the documentation):

   Brother 685CW (option 2) is a wireless, network-capable printer.

   Change the "Queue Name" field to "BINARY_P1" as shown above. This is a standard queue name that may work with a variety of other network-capable printers.

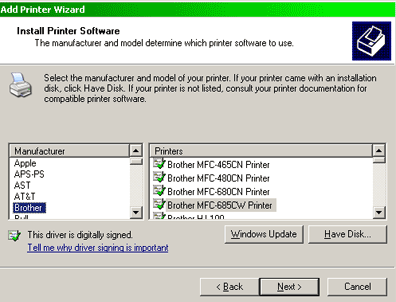

7. Once the port is configured, connect the printer as usual. If your printer is not on the list, make sure you have the relevant drivers ready.

That is it! You may then use your networked printer like any other printer.

What is a Cloud-Based Print Server and How Does It Work?

Cloud printing is a printing system that allows users to submit print jobs to printers connected to a cloud service regardless of where they are physically located. Unlike traditional printing techniques, which rely on a direct connection between a computer and a printer, cloud printing utilizes the internet and cloud infrastructure to speed the printing process.

The cloud printing architecture works by having a user submit a print job from a client device. The client device talks with the Cloud Print Proxy, which forwards print jobs to the Cloud Print Service. The Cloud Print Service then authenticates the user and sends the print job to the Print Server.

The Print Server receives the print job and moves it to the Print Queue. The Print Server then chooses the next print job from the queue and routes it to the appropriate Print Driver. The Print Driver translates the print job to a printer-friendly format and sends it to the printer.

The printer accepts the print job and transforms it into a tangible document. The printer delivers status information about the print job to the Print Server and the Print Driver. When a print task is done, the Print Server removes it from the Print Queue.

What are the Benefits of Cloud Printing?

The advantages of printing in the cloud are listed below.

• Simplified setup and maintenance: Cloud printing removes the need for complicated printer installation and driver setups on each user's device. With cloud-enabled printers, administrators may quickly connect and control users' printers from a distant location.

• Improved accessibility and mobility: Cloud printing enables users to print documents from anywhere with an internet connection. Users may transmit print jobs remotely, which eliminates the requirement to be physically present near the printer. This ease is especially beneficial for mobile workers, remote teams, and users on the move.

• Enhanced collaboration and productivity: Cloud printing enables smooth cooperation among team members. Multiple users can share access to the same cloud-enabled printer, which simplifies document workflows. Users may work together on papers, make changes, and then print the final copies, boosting effective cooperation and productivity.

• Cost and Resource Savings: Cloud printing can result in considerable cost reductions for enterprises. It eliminates the need to maintain many printers in various locations by allowing users to use a centralized pool of cloud-enabled printers. This consolidation maximizes printer use while minimizing needless hardware expenses. Additionally, cloud printing decreases paper waste with features such as print release, which requires users to verify themselves at the printer before their document is printed.

How does Printer Pooling Benefit Network Printing?

One excellent strategy to increase your printing system's efficiency is to pool your printers. Printer pooling is a configuration that enables your computer or print server to recognize several physical printers, scanners, and fax machines as a single logical printer. With this configuration, there is no need for a default printer because a single print job may be dispersed and delivered to the next available printer in the pool. It divides print tasks among the printers in a pool that is created by configuring several printers into a single pool. You may avoid the expensive expense of on-site service and save time and money by using this method. On your computer, each printer in the pool is given a port name and a logical printer. Printer pooling has gained popularity as a cost-effective and efficiency-boosting option with the advent of contemporary networking.

Instead of depending on a single printer to meet all of your printing requirements, you may have several printers in the same pool using a printing pool. This greatly lowers the possibility of both wasteful downtime from a broken printer and a bottleneck brought on by a single printer.

In order to determine the IP addresses of all the printers in the pool, you may first set up a single logical printer on your computer and then use the same driver to choose the ports of each printer. It only takes a few mouse clicks to accomplish this, such as right-clicking on the printer's properties and choosing the ports tab.

When a print job is delivered to a printer via a printer pool, the control panel determines which printer in the pool is most suited for the task. The task is sent to the second printer if the first printer is overloaded. Because the drivers may be set up to use the same driver, this works even if the printers in the pool are of similar models.

This implies that no time is wasted on IP addresses, PCL, Postscript, port selection, or model creation. Additionally, in the case of a paper clog or other blockage, having a backup printer on hand helps save wasted downtime.

How do Print Servers Manage Multiple Print Jobs?

Print servers act as a bridge between computers and printers by taking in printing jobs from computers and sending them to the right printer. To avoid overtaxing a busy printing device, they achieve this by locally storing and queuing print requests.

Print servers, as opposed to direct IP printing to local printers, provide for resource conservation and effective control of a company's print tasks and printer fleet. By prioritizing and queuing jobs, as well as monitoring jobs and supplies, print servers reduce customer annoyance and ensure seamless operations. How print servers handle multiple prins jobs are outlined below.

• Job Queue Management: Print servers establish a queue for the storage of incoming print jobs. Jobs are executed in the sequence of their arrival unless overridden by priority configurations.

• Prioritizing: Certain print servers provide the prioritizing of work according to user-defined criteria, such job size, user permissions, or urgency.

• Spooling: The server temporarily retains print job data to handle high-volume requests. This mitigates printer overload and guarantees uninterrupted functionality.

• Load Balancing: In settings with several printers, the server distributes print tasks across devices to enhance performance and mitigate bottlenecks.

• User Authentication: Print servers often need user authentication to guarantee that only authorized personnel may access printing resources.

• Error Management: Should a printer have a malfunction (e.g., paper depletion), the server may suspend the operation, alert users, or reroute it to an other printer.

Print servers promote productivity, minimize redundancy, and bolster security in networked printing settings via centralized management.
