What is Packet Tracing?

Published on: June 20, 2024

.

14 min read

.

For German Version

In the realm of computer networking, the flow of data packets between devices is the lifeblood of communication. To understand, troubleshoot, and optimize these data flows, network professionals employ various tools and techniques. One such powerful tool is packet tracing. Packet tracing is essential for network diagnostics, performance monitoring, and security analysis. It provides insights into the intricate details of data transmission, helping network administrators ensure the smooth and efficient operation of networks.

The technique of recording, tracking, and evaluating data packets as they move over a network is known as packet tracing. With the adoption of this technique, network administrators may keep an eye on packet traffic, comprehend network behavior, identify problems, and confirm that protocols and policies are being followed appropriately. In order to provide a thorough picture of the data being sent and the interactions between network devices, it entails following the travel and condition of packets from their source to their destination.

Tracing packets is similar to tracking the trip of a significant document, revealing its route and any obstacles it faces. Within the context of networks, it describes the procedure for tracking and examining each data packet's path from the source to the destination. Packet tracing captures information about each data packet, including the origin device, source device, destination device, pathways, and even delays.

Specialized software tools or features built into network devices act as your digital bloodhounds. These tools monitor traffic on a designated network interface, recording details of each packet that passes through. Filters can be applied to focus on specific types of traffic, like tracking packets between your computer and a particular website. By analyzing the captured data, admins can diagnose and fix various network gremlins, such as;

• Slow data transfer: Is your download agonizingly slow? Packet tracing can reveal bottlenecks or congestion causing sluggishness.

• Routing woes: Is your data taking a scenic route instead of a direct path? Packet tracing can expose incorrect routing configurations.

• Missing in action: Are data packets vanishing into thin air? Packet tracing can help identify and address cases of packet loss.

These tools often come equipped with features to:

• Visualize the journey: See a map-like representation of the network path a packet takes.

• Decode the message: Decipher the contents of the packet headers, revealing information about the packet itself.

• Filter and search: Narrow down the captured data by specific details, like source or destination IP address.

The following topics are going to be discussed in this article:

• How Does It Differ from Packet Capturing?

• What Tools or Software are Commonly Used for Network Packet Tracing?

  1. Wireshark

  2. tcpdump

  3. Ethereal

  4. Microsoft Network Monitor

  5. tshark

• How Does Packet Tracing Contribute to Network Troubleshooting and Diagnostics?

• What Specific Issues Can Packet Tracing Help Identify and Resolve?

• How Can Packet Tracing Help Pinpoint Issues Related to Specific Applications or Services?

• In What Ways Can Packet Tracing Aid in Identifying and Mitigating Distributed Denial of Service (DDoS) Attacks on a Network?

• What Information is Typically Included in a Packet Trace?

• What Role Does Packet Tracing Play in Security Investigations?

• How Does the Use of Packet Tracing Tools Differ Between Wired and Wireless Network Environments?

• Is Real-Time Monitoring Possible with Packet Tracing?

• What Challenges or Considerations Should be Taken into Account When Packet Tracing?

• How Can These Problems Be Solved?

• What Packet Tracing Techniques Are Used to Strengthen Network Security?

How Does Packet Tracing Differ from Packet Capturing?

There are some key differences between packet capturing and packet tracing. They are closely related concepts in network analysis. Packet capturing is the act of intercepting and recording a specific portion of data packets that flow on a network. Sometimes it is all data packets. It's like capturing all the mail passing through a specific mailbox. Packet-capturing tools mainly create a digital snapshot of network traffic. This captured data can be analyzed later to diagnose various network issues. It is often saved in a ‘.pcap’ file format and is useful for investigating security breaches or monitoring network activity.

Packet tracing focuses on following the specific path of individual data packets in the network. It is like tracking a single important letter through the postal system. Packet tracing tools record information about each packet. These include info about its source, destination, route taken, and any delays or errors. This is useful to identify bottlenecks, routing problems, or specific points of failure impacting the network's performance.

Packet capturing gathers data on all or a filtered set of packets, providing a broader picture of network activity. Packet tracing focuses on the specific journey of individual packets.

While packet captures require further analysis after recording to identify issues, packet tracing tools often offer features to visualize the path and analyze the captured data related to a specific packet's journey.

Packet capturing has a wider range of applications, including security analysis, network monitoring, and traffic analysis. However, packet tracing is primarily used for troubleshooting specific network performance issues.

The key differences between packet capturing and packet tracing are given in the following table:

Feature	Packet Capturing	Packet Tracing
Scope	Limited to data capture	Broader, includes path analysis and context
Focus	All or filtered network traffic Collecting raw packet data	Specific data packets or filtered sets Tracking packet paths and behavior
Captured Data	Full packet data (headers & payload)	Primarily packet headers (routing information)
Analysis Purpose	Deep inspection of packet content	Identifying network path and potential issues
Typical Use Cases	Network troubleshooting, security investigations	Route tracing, network topology visualization
Output	Raw captured data files (PCAP format) (headers, payloads)	Visualized network path with timestamps and errors, hop-by-hop information, latency
Performance impact	Can affect network performance if capturing high volumes	Generally less intrusive, focused on specific paths
Purpose	Troubleshooting, performance analysis, security	Route analysis, performance bottleneck identification
Key Tools	Wireshark, tcpdump, WinPcap	Traceroute, MTR, Cisco Packet Tracer

Table 1. Packet Capturing VS Packet Tracing

What Tools or Software are Commonly Used for Network Packet Tracing?

Verifying a packet's journey through the layers to its destination is done through a method called packet tracing. It can be helpful to record and examine the segments that are exchanged between two hosts in order to troubleshoot networking issues or determine performance issues. There are numerous tools available for packet trace analysis, both in commercial and open-source versions. The packets that are transferred on a link can all be recorded by these tools. Obviously, administrator rights are needed to capture packets. They can show details about the intercepted packets and examine their content. The captured packets can be stored in a file for offline analysis. Some software tools commonly used for network packet tracing are listed below.

1. Wireshark

Wireshark is a widely used open-source network protocol analyzer. It captures packets in real time and displays them in detailed formats, allowing users to analyze network traffic at a granular level. Wireshark has cross-platform support. It runs on Windows, macOS, and Linux. It has extensive protocol support, as it is continuously updated with support for new protocols. It's community-driven with extensive community support and a wealth of tutorials and documentation. Users can read data from Ethernet, IEEE 802.11, PPP/HDLC, ATM, Bluetooth, USB, and other sources with Wireshark's live capture feature. Its remarkable display filter mechanism makes it simple for consumers to sort through intricate packet data. Furthermore, Wireshark interfaces with OS fingerprinting, GeoIP, and many decryption features, providing its users with enhanced functionality. Some features of Wireshark are as follows:

• Wireshark supports over 800 network protocols

• Real-time packet capturing and offline analysis

• Deep inspection of hundreds of protocols makes a versatile tool for analysis.

• Rich display filters

• Ability to read/write captured files in many formats, including .pcap

• User-friendly graphical interface with advanced visualization options

2. tcpdump

Tcpdump is a powerful command-line packet analyzer. It allows users to capture and display TCP/IP and other packets being transmitted or received over a network to which the computer is attached. Tcpdump is lightweight with minimal resource usage compared to GUI-based tools. It is easily integrated into scripts and automated tasks. It is compatible with most Unix-like operating systems. Although it may need additional tools for a more thorough examination and has a learning curve for beginners due to its lack of GUI, it's a powerful tool. Some features of tcpdump are listed below:

• Command-line interface for flexibility and scripting

• Real-time packet capture and display

• Ability to filter captured data using Berkeley Packet Filter (BPF) syntax

• May collect captured packets to a file for further analysis

• Lightweight and low-demanding on system resources

• BPF-based fine-grained packet filtering

• Adaptable to several platforms

3. Ethereal

Ethereal is the former name of what is now known as Wireshark. It provided network protocol analysis with similar features as Wireshark. It is a legacy tool. While no longer actively developed, it laid the foundation for Wireshark and shares many of its features. Some features of Ethereal are given below:

• Packet capture and display with detailed protocol information

• Filtering capabilities to focus on specific traffic types

• Comprehensive packet dissection capabilities

4. Microsoft Network Monitor

Microsoft Network Monitor (NetMon) is a network packet analyzer designed for Windows. It allows users to capture, view, and analyze network traffic which makes it useful for troubleshooting and diagnostics in Windows environments. It has seamless integration with Windows OS and services. It has extensive protocol parser libraries for Microsoft protocols. Intuitive GUI tailored for Windows users and it is user-friendly. Some features of NetMon are given below:

• Real-time packet capture and analysis

• Detailed parsing of network protocols

• Advanced filtering and search capabilities

• Integration with other Microsoft tools and technologies

5. Tshark

Tshark is the command-line version of Wireshark. It provides similar functionalities for capturing and analyzing network packets but operates entirely via the command line. Tshark is ideal for remote or server environments where a GUI is not available. It can be integrated into scripts and automated processes. It shares the same powerful engine and features as Wireshark. Some features of Tshark are listed below:

• Command-line packet capture and analysis

• Use of Wireshark's powerful filtering capabilities

• Ability to export captured data to various formats

How Does Packet Tracing Contribute to Network Troubleshooting and Diagnostics?

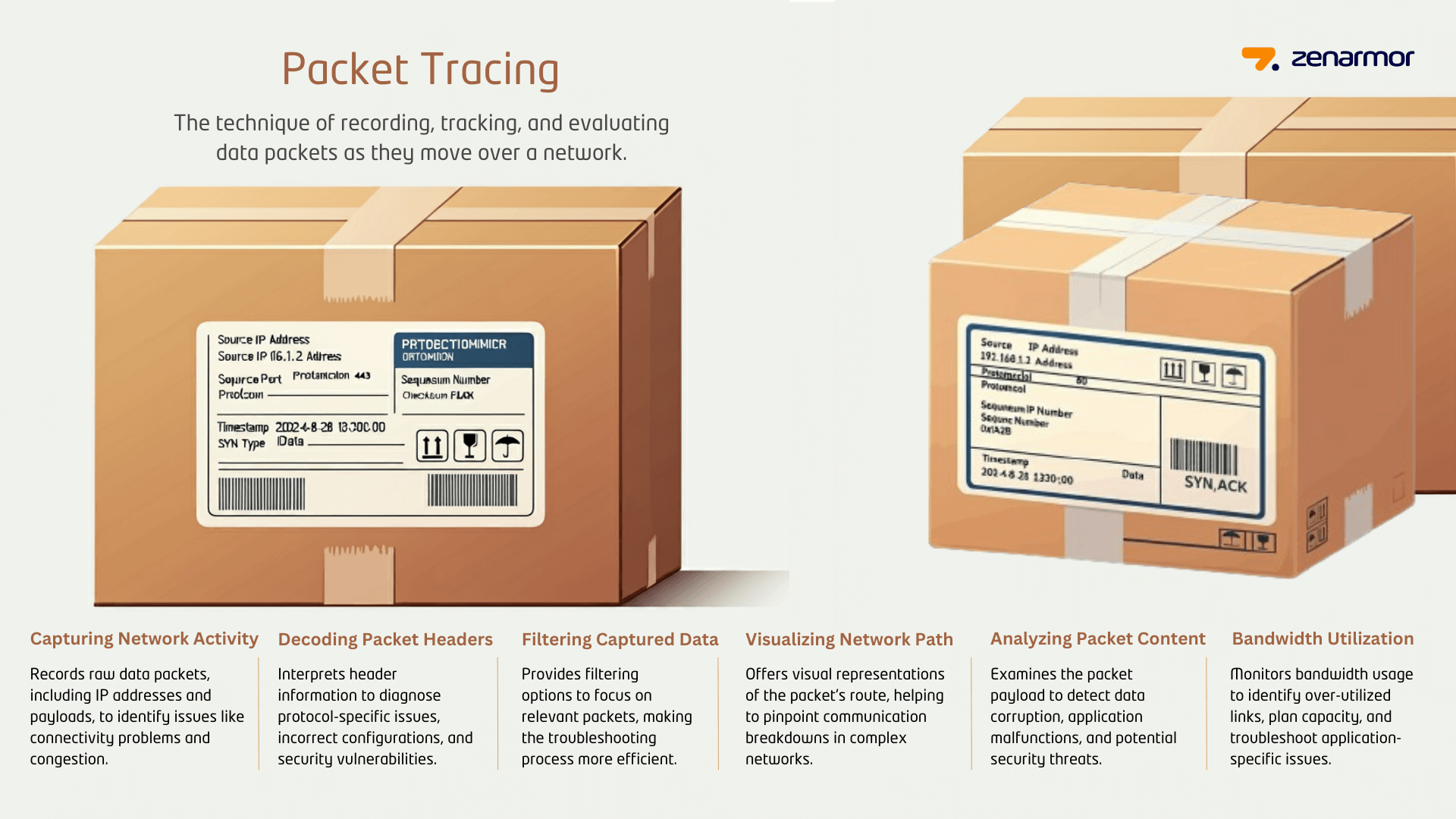

Packet tracing wields a set of features that illuminate the inner workings of network traffic and pinpoint the root causes of various network issues. It is a powerful tool for network troubleshooting and diagnostics. Here's how specific packet tracing features contribute to troubleshooting and diagnostics:

• Capturing Network Activity: Packet tracing tools capture raw data packets. This data includes source and destination IP addresses, protocols used, and the packet payload, which is the actual data being transferred. By examining captured packets, irregularities in network traffic that might indicate problems can be identified. For example, missing packets could point to connectivity issues, while unusually large packets might suggest bottlenecks or congestion.

• Decoding Packet Headers: Most packet tracing tools have the ability to decode information contained within the packet headers. These headers hold vital details about the packet's origin, destination, type, data, control, and any errors encountered during transmission. It can decode and interpret various network protocols, providing a clear view of protocol-specific information. Identifies protocol-specific issues, such as incorrect implementations, protocol mismatches, or protocol violations. Decoding these headers allows for a deeper understanding of the network traffic and communication of devices. It can reveal issues like incorrect routing configurations, protocol errors, or security vulnerabilities.

• Filtering Captured Data: Packet tracing tools typically offer extensive filtering capabilities. You can filter captured data based on various criteria, such as source or destination IP address, protocol type, or specific keywords within the packet payload. Filtering streamlines the troubleshooting process by focusing on relevant packets related to the suspected problem. This saves time and effort compared to analyzing the entire capture file.

• Visualizing Network Path: Some advanced packet tracing tools offer visual representations of the network path a packet takes. This can be a map-like view or a series of hops the packet traverses between its source and destination. Visualizing the network path helps pinpoint where communication breakdowns might be occurring. This can be particularly valuable in complex network environments with multiple devices and connections.

• Analyzing Packet Content: While some tools focus on header information, advanced options might allow deeper inspection of the packet payload itself. This can be useful for troubleshooting application-specific issues or identifying potential security threats. Analyzing packet content allows for a more comprehensive understanding of the data being transferred. It can reveal issues like corrupted data, application malfunctions, or unauthorized data transfers. Security and compliance monitoring is another contribution of packet tracing as a result.

• Bandwidth Utilization: Monitors and analyzes bandwidth usage by different applications, users, and devices. Packet tracing detects bandwidth hogs, identifies over-utilized links and helps in capacity planning and optimization. It can reconstruct network sessions and application-level interactions. It troubleshoots issues related to specific applications or user sessions, such as connection failures, session drops, and application errors.

What Specific Issues Can Packet Tracing Help Identify and Resolve?

By combining its features, network administrators can effectively diagnose a wide range of network problems. Packet tracing helps identify the next issues:

• Connectivity Issues: Packet tracing can reveal missing packets. It can help diagnose issues like faulty cables, overloaded network switches, or weak wireless signals. Excessive delays in packet transmission are another case. This could be caused by congested network segments, long distances between devices, or overloaded network resources. Timeouts occur when a device doesn't receive a response from another device within a specific timeframe. Packet tracing can expose these timeouts and help identify the root cause, such as firewalls blocking communication or issues with specific network protocols.

• Routing Errors: Packet tracing can reveal packets taking unexpected routes due to misconfigured routers. Packets endlessly circling within your network can lead to performance degradation. Analyzing the captured data and path visualization features can help identify these routing errors, and loops and ensure packets follow the intended path.

• Congestion and Bottlenecks: Packet tracing can expose areas experiencing unusually high traffic volume. This can pinpoint bottlenecks in your network infrastructure, like under-provisioned network links or overloaded devices. By identifying these bottlenecks, you can take steps to improve network capacity or optimize traffic flow. While some congestion relates to overall network traffic, packet tracing can help identify application-specific bottlenecks.

• Protocol Errors: Network communication often involves a handshake process between devices. Packet tracing can reveal failures during these handshakes, indicating issues with specific protocols used for communication. By examining the decoded packet headers, you can identify the specific protocol involved and troubleshoot the cause of the handshake failure. Packet tracing can help identify corrupted data packets during transmission. This could be caused by physical layer issues (faulty cables), interference in the wireless environment, or overloaded network devices. By pinpointing where the corruption occurs, you can address the underlying cause.

• Security Risks: When network traffic patterns deviate from expectations, there may be cause for concern. Unusual traffic surges, connections with known malicious domains, or unauthorized access attempts can all be found via packet tracing. You can look into these questionable behaviors and implement the necessary security measures by examining the data that was collected. Attackers overwhelm your network with traffic during a denial-of-service attack (DoS). These kinds of attacks can be recognized with packet tracing, as they can show abrupt spikes in traffic volume coming from a multitude of sources. While tracing the exact source might be challenging, packet tracing can still help identify the attack and provide insights for mitigation strategies.

How Can Packet Tracing Help Pinpoint Issues Related to Specific Applications or Services?

Bandwidth hogging, protocol violations, QoS issues, DNS and DHCP issues, VoIP call quality and file transfer problems, and network time protocol service problems(NTP) are examples of where packet tracing can contribute. Some cases that packet tracing can pinpoint are as follows:

• Web application performance issues with slow loading times, timeouts, or incomplete page loads.

• Analyze HTTP requests and responses to identify delays.

• Examine SSL/TLS handshake processes to diagnose encryption-related issues.

• Filter traffic to focus on specific web server communications.

• Applications failing to connect to the database, slow query responses.

• Capture and analyze SQL queries and responses to identify slow or failing queries.

• Check TCP/IP connections for dropped packets or retransmissions.

• Monitor for database server errors communicated over the network.

• Email delivery failures, emails not being sent or received, slow email processing.

• Capture SMTP traffic to identify issues in email submission or relay processes.

• Analyze IMAP or POP3 traffic for issues in email retrieval.

• Detect error messages or authentication failures.

In What Ways Can Packet Tracing Aid in Identifying and Mitigating Distributed Denial of Service (DDoS) Attacks on a Network?

An intentional attempt to obstruct regular activity on a server, service, or network by flooding the target or its surrounding infrastructure with an excessive amount of Internet traffic is known as a Distributed Denial of Service (DDoS) attack. DDoS attacks leverage multiple compromised computer systems as sources of attack traffic. Computers and other networked resources, such as IoT devices, may be a part of these systems.

Although packet tracing cannot prevent a DDoS attack on its own, it can be extremely helpful in some ways. Detailed traffic information, such as source and destination IP addresses, ports, and protocols, are captured by packet tracing. This aids in identifying anomalous traffic patterns, such as an abrupt spike in traffic or traffic originating from a multitude of sources, that are suggestive of a denial-of-service attack. Anomalies are found by real-time packet data monitoring and analysis. It recognizes anomalies in the way traffic behaves, like an excessive amount of SYN packets that point to a SYN flood attack. Detailed information about the source IP addresses of the packets. It identifies the geographical location and potential origin of the attack traffic. This helps to understand the scale and distribution of the DDoS attack. In-depth inspection of the packet headers and payloads identifies specific types of DDoS attacks targeting particular network protocols (e.g., HTTP floods, and DNS amplification attacks). Packet tracing tools can be integrated with firewalls and intrusion prevention systems (IPS) to filter out malicious traffic. It blocks identified malicious IP addresses and types of traffic.

Note that there are some limitations on packet tracing while confronting DDoS attacks. Traditional packet tracing involves capturing and analyzing data after the fact. While some techniques offer near real-time visibility, DDoS attacks can evolve rapidly. Attackers often use spoofed IP addresses which makes it difficult to trace the true source of the attack traffic.

High-volume overload is another issue. Capturing massive amounts of DDoS traffic can overload your packet tracing tools and network itself. Packet tracing is most effective when combined with the following DDoS mitigation strategies:

• Traffic Filtering: Implement techniques to filter out suspicious traffic patterns associated with DDoS attacks.

• Rate Limiting: Limit the number of requests a single IP address can send within a specific timeframe to prevent overwhelming traffic from a single source.

• DDoS Mitigation Services: Consider subscribing to DDoS mitigation services offered by security providers. These services can automatically detect and mitigate DDoS attacks using sophisticated techniques.

What Information is Typically Included in a Packet Trace?

A packet trace acts like a digital snapshot of network traffic, capturing valuable information about each data packet that travels across the network. Packet tracing tools capture and store information about network packets for later analysis. This stored information forms the "packet trace" file. A packet trace typically contains details at two main levels. Here's what you'll typically find within a packet trace:

• Packet Header Information: Headers contain essential information used to deliver packets correctly through the network. This section provides the next crucial details about the packet itself:

  • Source and Destination IP Addresses: Identifies the devices sending and receiving the data.

  • Protocol: Specifies the type of communication (e.g., TCP, UDP, HTTP).

  • Port Numbers: Identifies the specific applications or services using the protocol (e.g., port 80 for HTTP traffic).

  • Packet Length: Indicates the size of the data carried by the packet.

  • Sequence Numbers (TCP only): Used for ordered data delivery and error checking in TCP communication.

  • Flags (TCP/UDP): Control flags indicating various aspects of the communication, like starting or ending a connection.

  • Ethernet Headers: Source and destination MAC addresses, EtherType.

  • IP Headers: Source and destination IP addresses, protocol type, TTL (Time to Live), header length, and total packet length.

  • TCP/UDP Headers: Source and destination ports, sequence numbers (TCP), acknowledgment numbers (TCP), flags (TCP), checksum, length (UDP).

• Packet Payload: This section contains the actual data being transferred within the packet. This can include application data, file transfers, web traffic, emails, etc. However, it's important to note that not all tools capture payload data. Some tools might focus solely on header information due to privacy concerns or performance limitations. Another case is that payload data may be encrypted depending on the protocol. If the communication is encrypted like HTTPS, the payload will appear scrambled and unreadable without the decryption key. However, application data such as HTTP requests and responses, FTP commands and data, DNS queries and responses, email contents (SMTP), and more are included.

Other detailed info for diagnostics includes;

• Timestamps of packet capture with high precision, like micro or nanosecond.

• Protocol Information like HTTP, HTTPS, FTP, DNS, DHCP, ICMP, etc. This includes higher-layer protocol data that helps in understanding the context of the communication.

• Frame Information which includes metadata about the captured frame, useful for low-level network analysis. Frame number, frame length, capture length, and encapsulation type are included.

• Error Information like checksums, error flags, retransmissions, dropped packets, and other error-related details.

• Signal strength and quality, signal-to-noise ratio (SNR), channel information, and other Radio Frequency(RF) metrics for wireless networks.

• Quality of Service (QoS) information, Differentiated Services Code Point(DSCP), Type of Service( TOS )bits, and traffic class identifiers.

• Manual annotations, comments on specific packets or flows, and explanatory notes for further analysis.

• Flow start and end times, total bytes and packets, flow direction, and flow state.

What Role Does Packet Tracing Play in Security Investigations?

Security investigations are the process of gathering and analyzing evidence to identify, understand, and respond to security incidents. These incidents can range from malware infections to data breaches or unauthorized access attempts.

Packet tracing in security investigations provides detailed insights into network activity. It helps reconstruct the timeline of events by analyzing timestamps within captured packets. It helps to identify the source of attacks. Here's where packet tracing comes in as a valuable tool for security investigations with its aiding features:

• Detecting Unusual Traffic Patterns: Experts can search for odd patterns that could point to malicious behavior by examining collected packets. This can involve communication with known malicious domains, abrupt increases in traffic volume, or peculiar port utilization.

• Examining Network Intrusions: Packet tracing can identify attempts to enter your network without authorization. Investigators can find such risks by looking for particular signatures or protocols linked to intrusion attempts in the collected packets.

• Forensic Analysis: Packet capture data can be a vital source of evidence following a security compromise. Investigators can retrace the attacker's movements, comprehend the intrusion strategy, and discover compromised resources by analyzing the collected packets.

• Validating Security Controls: You can evaluate the efficacy of security controls by capturing packets before and after they are implemented. These include firewalls or intrusion detection systems (IDS). This might help pinpoint any safeguards that have been circumvented or places where your security posture needs to be reinforced.

• Detecting Malware Activity: Network communication patterns connected to malware infections on your network's devices can be found via packet tracing. Some malware strains use communication to exchange data or provide command and control over external systems. By searching for patterns connected to known malware protocols or questionable data transfers, packet tracing can assist in the detection of these interactions.

How Does the Use of Packet Tracing Tools Differ Between Wired and Wireless Network Environments?

While wired and wireless networks share the core principles of data transmission. Their underlying infrastructure and potential challenges differ. This influences how packet tracing tools are used in each environment. Wired Networks rely on physical Ethernet cables to connect devices. They generally offer higher bandwidth, lower latency, and more consistent performance compared to wireless networks. Wireless Networks employ radio waves for transmitting between devices. This provides flexibility and mobility but can be susceptible to interference, signal strength fluctuations, and security vulnerabilities.

Feature	Wired Networks	Wireless Networks
Physical Medium	Devices connect using physical cables (e.g., Ethernet).	Devices connect using radio waves.
Stability and Reliability	Offer greater stability and reliability due to the physical connections between devices.	Can be more susceptible to interference from external sources Potential instability.
Interference	Less susceptible to interference from external sources like other devices or environmental factors.	More susceptible to interference from other wireless devices, physical obstructions (walls), and environmental factors.
Bandwidth	Typically offer higher bandwidth and can deliver faster data transfer speeds.	Generally offer lower bandwidth compared to wired networks, and the available bandwidth can be further affected by distance from the access point and interference.
Security	Easier to secure due to the physical connections required to access the network.	Wireless signals can be intercepted more easily.
Flexibility and Mobility	Limited mobility as devices need to be physically connected to the network.	Offer greater flexibility and mobility as devices can connect from anywhere within the wireless signal range.

Table 2. Differences Between Wired and Wireless Networks

Packet Tracing Techniques between Wired and Wireless networks differ accordingly.

Wired Networks: Packet tracing tools for wired networks can be connected directly to the network via a switch's SPAN port or through network taps. High-performance Network Interface Cards (NICs ) capable of handling full-duplex traffic at high speeds. Tools like Wireshark and tcpdump are commonly used for direct packet capture. Provides high accuracy and reliability in capturing packets without wireless interference or signal degradation. High volumes of traffic can be dealt with with no packet loss during capture. It provides simpler visibility and a centralized location.

In wired networks, tracing packets is generally more straightforward. Tools can directly capture traffic on specific network segments using network taps or SPAN ports. These provide access to the data flowing through the cable without disrupting network traffic. Wired networks often have a central location like a switch room where network traffic converges. This allows for capturing packets at a single point to gain visibility into overall network communication.

Wireless Networks: Packet tracing tools must capture packets over the air, requiring specialized wireless adapters that support monitor mode. Wireshark, Aircrack-ng, and Kismet are often necessary for wireless packet capture. It provides visibility into wireless traffic, including management and control frames not present in wired networks. Analysis of wireless-specific issues such as signal strength, interference, channel usage, and encryption protocols. More complex due to factors like varying signal strengths, interference, and the need to capture packets from multiple channels. Wireless adapters that support monitor mode and can capture traffic on multiple channels. Requires placing capturing devices strategically in order to cover the entire wireless network. Instruments must take into consideration and evaluate signal-to-noise ratio (SNR), radio frequency (RF) interference, and other wireless-specific factors. For signal analysis and wireless site assessments, programs like NetSpot and Ekahau are utilized. Identification of risks to wireless security, such as WPA/WPA2 attacks, rogue devices, and unauthorized access points.

Because wireless media is shared, tracing packets in wireless networks might be more difficult. The same radio frequencies may be used by several devices, making it challenging to separate out particular traffic. Capturing wireless packets typically involves using the wireless adapter on your computer in monitor mode. This mode allows you to see all wireless traffic in the surrounding area, but it can't differentiate between specific devices unless they're identified by their MAC address.

The strength and stability of the wireless signal can affect the effectiveness of packet tracing. Weak signals or interference can lead to dropped packets or incomplete data capture.

What are the Tools and Techniques for Wireless Packet Tracing?

Tools and techniques for wireless packet tracing are as follows:

• Wireless Network Analyzers: Specialized tools designed for wireless network analysis can offer features like identifying connected devices, visualizing signal strength, and capturing wireless packets.

• Remote Capture Tools: Certain packet tracing tools allow capturing packets from remote wireless devices within the network. This can be helpful for troubleshooting issues on specific devices.

• Packet Injection: Advanced techniques involve injecting test packets into the wireless network to assess connectivity and identify potential bottlenecks. However, this requires specialized knowledge and should be done with caution.

Is Real-Time Monitoring Possible with Packet Tracing?

YES, real-time monitoring is possible with traditional packet tracing. Real-time monitoring refers to continuously collecting and analyzing data as it's generated. This allows for immediate identification and response to issues. Packet tracing, while valuable, involves capturing and analyzing network traffic after the fact. There are limitations including capturing and storage. Packet tracing tools typically capture packets and store them for later analysis. This introduces a delay between the actual network activity and when it's analyzed. However, the following techniques bridge the gap and provide near-real-time insights:

• Some advanced mainly commercial packet tracing tools offer features for live capture with real-time filtering. This allows you to focus on specific traffic patterns while capturing data and gain close-to-real-time visibility into relevant network activity.

• Stream-to-disk solutions combine packet capture with real-time analysis. Captured packets are fed into an analysis engine that identifies issues as they occur. This provides a faster response time compared to traditional post-capture analysis.

• Real-time network monitoring tools like Simple Network Management Protocol(SNMP) and NetFlow can provide continuous monitoring of network metrics like bandwidth usage, latency, and packet loss. While these network monitoring tools don't offer the deep packet inspection capabilities of packet tracing, they can provide a real-time overview of network health.

A more comprehensive understanding of the network activity can be achieved by combining these techniques. Approaching near real-time monitoring with the detailed analysis capabilities of packet tracing may be possible. Some tracing tools can capture network packets continuously, and provide a live stream of data traffic. Some packet tracing tools are equipped with the capability to analyze packet data as it is being captured. This real-time analysis can detect anomalies, intrusions, and performance issues instantly. Some tools can apply real-time filters and display live packet data, enabling immediate inspection and analysis. They can be configured to trigger alerts or notifications when specific conditions or anomalies are detected in the network traffic. They can integrate with packet tracing to provide real-time alerts based on predefined security rules and signatures. Real-time dashboards and visualizations help administrators quickly interpret live packet data. These tools provide graphical representations of network traffic, highlighting key metrics and potential issues. Security Information and Event Management (SIEM) systems can integrate with packet tracing tools to provide a holistic view of network security in real time. They aggregate and analyze data from various sources, including live packet captures.

What Challenges or Considerations Should be Taken into Account When Packet Tracing?

Packet tracing comes with its own set of challenges and considerations. You should keep in mind the following points when packet tracing:

• Firewalls, network segmentation, and encryption can restrict the visibility of packet-tracing tools. This makes it difficult to see traffic across all network segments.

• Capturing a large volume of traffic can overload your system. This impacts performance and skews the captured data, especially in limited-resource environments.

• Analyzing captured packets can be complex, especially for those unfamiliar with network protocols and packet structure. Filtering and interpreting the data requires expertise.

• Captured packets might contain sensitive information like usernames, passwords, or application data. This raises privacy concerns and requires careful handling and anonymization of sensitive data if necessary.

• If packet tracing tools are not properly secured, attackers might gain access to captured data.

• Involves attackers intercepting and manipulating network traffic. Packet tracing tools themselves might become targets for man-in-the-middle attacks. This will compromise captured data or inject malicious packets into the network.

• Malicious actors could exploit packet tracing tools to launch DoS attacks by overwhelming them with a massive volume of traffic. This can disrupt legitimate network operations.

• In some regions, data privacy regulations might restrict how you capture and store network traffic. Understanding and complying with relevant regulations is essential.

• Running packet tracing tools requires sufficient system resources like processing power and storage space. Ensure your system can handle the capture and analysis load without impacting network performance.

How Can These Problems Be Solved?

Packet tracing offers valuable network insights, but it's not without its challenges. Some strategies to address the potential problems and ensure secure and responsible packet tracing are listed below:

• For visibility issues, position your packet tracing tool at a strategic point on the network where you can observe the desired traffic flow. Consider using network taps or SPAN ports to gain access to specific traffic segments that might be filtered by firewalls or segmentation.

• If visibility is restricted due to network segmentation, collaborate with network security teams to gain temporary access to required segments for specific tracing sessions.

• Leverage the filtering capabilities of your packet tracing tool to focus only on relevant packets. This reduces the amount of data captured and minimizes the load on your system.

• Limit the capture duration to a specific timeframe relevant to your troubleshooting needs. This helps manage the volume of captured data.

• If dealing with very high-volume traffic, consider using packet sampling techniques. This captures only a representative subset of packets, reducing the overall data load while still providing valuable insights.

• Invest in training on network protocols, packet structure, and data analysis techniques specific to your chosen packet tracing tool.

• Utilize online communities, forums, and documentation related to your packet tracing tool. This will help interpret specific data patterns or troubleshoot common issues.

• Implement strong access controls and encryption to restrict unauthorized access to packet tracing tools and captured data. This includes using strong passwords and multi-factor authentication.

• If captured packets contain sensitive information, consider anonymizing the data before storing or sharing it. This can be achieved by removing personally identifiable information (PII) or masking specific data fields.

• Utilize secure capture methods, such as network taps or SPAN ports, to avoid potential vulnerabilities associated with directly capturing traffic on shared network segments.

• Keep your packet tracing software updated with the latest security patches to address potential vulnerabilities that attackers might exploit.

• Implement network segmentation to isolate critical network segments and limit the potential impact of attacks targeting packet tracing tools.

• Configure resource limitations on your packet tracing tools to prevent them from being overwhelmed by DoS attacks.

• Keep up with local laws pertaining to data privacy in your area. Ensure your packet tracing practices comply with these regulations, particularly regarding data capture, storage, and anonymization.

• Before deploying packet tracing tools, assess your system resources to ensure they can handle the capture and analysis load without impacting network performance. Consider upgrading hardware if necessary.

What Packet Tracing Techniques Are Used to Strengthen Network Security?

Packet tracing techniques are crucial for enhancing network security by providing detailed insights into network traffic, identifying anomalies, and facilitating quick responses to security incidents. Some key techniques used to bolster network security are outlined below:

• Deep Packet Inspection (DPI): DPI is a type of packet filtering that looks for protocol non-compliance, viruses, spam, intrusions, and other specified criteria as a packet passes an inspection point. Based on these findings, the system determines whether the packet can pass or needs to be rerouted or blocked. Use cases of packet tracing in DPI are as follows:

  • Recognizing and avoiding harmful traffic

  • Identifying and eliminating attacks that cause a denial of service

  • Implementing security regulations in a detailed manner

• Anomaly Detection: Monitoring network traffic to spot patterns that diverge from a baseline of typical behavior is known as anomaly detection. This method assists in identifying anomalous behavior that might point to a security risk. Use cases of packet tracing in anomaly detection are as follows:

  • Identifying suspicious network behaviors

  • Detecting zero-day attacks

  • Triggering alerts for unusual traffic patterns

• Signature-Based Detection: Signature-based detection involves scanning network traffic for known patterns of malicious activity, known as signatures. These signatures are predefined and based on known threats. packet tracing is utilized in the following cases:

  • Detecting known malware and exploits

  • Quickly identifying and responding to recognized attack patterns

  • Maintaining an up-to-date database of threat signatures

• Behavioral Analysis: Behavioral analysis focuses on understanding the typical behavior of network entities (such as users, devices, and applications) and detecting deviations from these established patterns. Use cases of packet tracing in network behavioral analysis are as follows:

  • Detecting insider threats and compromised accounts

  • Identifying unusual data exfiltration attempts

  • Enhancing user and entity behavior analytics (UEBA)

• Flow Analysis: Flow analysis involves examining the flow of traffic between network nodes to identify patterns, trends, and anomalies. This technique focuses on the metadata of the traffic rather than the actual packet contents. Use cases of packet tracing in flow analysis are as follows:

  • Monitoring network performance and utilization

  • Detecting large-scale data transfers that may indicate data theft

  • Identifying unusual traffic flows that may suggest lateral movement by attackers

• Threat Intelligence Integration: Integrating threat intelligence involves incorporating external data on known threats and vulnerabilities into the packet tracing process to enhance detection and response capabilities. Use cases of packet tracing in threat intelligence are as follows:

  • Enriching packet analysis with context from threat databases

  • Correlating network activity with known threat indicators

  • Proactively defending against emerging threats

• Automated Response: Automated response techniques involve setting up systems to automatically take action when a security threat is detected through packet tracing. This can include blocking traffic, isolating devices, or alerting administrators. Use cases of packet tracing in automated response are as follows:

  • Reducing response time to detected threats

  • Mitigating the impact of attacks through instant intervention

  • Enhancing the efficiency of security operations centers (SOCs)

• Encryption Analysis: Encryption analysis involves inspecting encrypted traffic to ensure it complies with security policies and does not contain hidden threats. This can involve decrypting traffic at certain points for inspection. It is utilized in;

  • Detecting and blocking encrypted malware communications

  • Ensuring compliance with encryption standards and policies

  • Identifying improper use of encryption that may hide malicious activity
