Changing Tracefs Partition Size on Zenconsole

Zenarmor uses Tracefs which is a thin stackable file system for capturing file system traces in a portable manner, in the directory /usr/local/zenarmor/run/tracefs. If you see warnings in the system log that this partition is full, you will need to increase the disk space size. The minimum and maximum size of the Tracefs disk is 100 MB and 500 MB, respectively.

Tracefs Partition Size pane on the Database page allows you to set the Tracefs disk size used by Zenarmor.

Changing Tracefs Partition Size

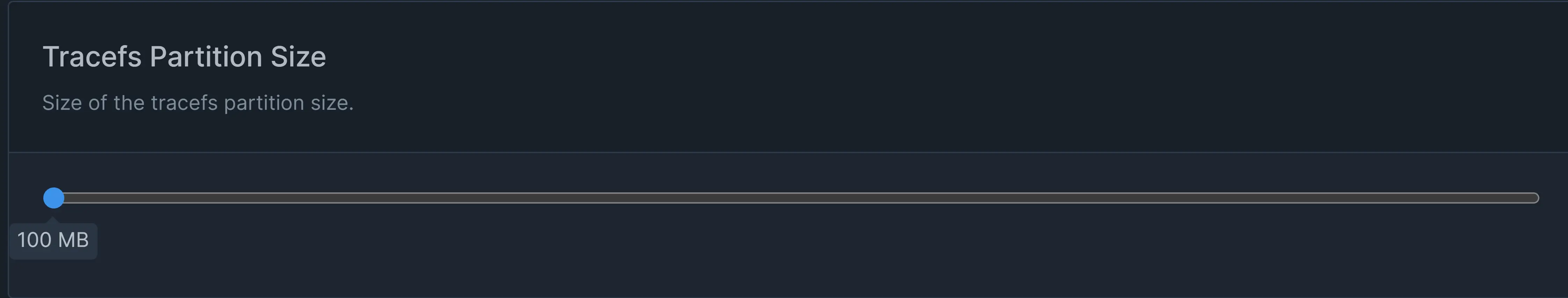

Figure 1. Changing the Size of the Fast Temporary Memory Disk

To change the size of the Tracefs partition, you may follow the steps given below:

  1. Click your firewall on Zenconsole UI.
  2. Click Settings menu on the left-hand sidebar.
  3. Click Database menu under Reporting & Data.
  4. Scroll down to the Tracefs Partition Size pane.
  5. Scroll left on the Tracefs Partition Size bar to decrease or right to increase. The default value is 100. This will display a dialog box.
  6. Click Restart to activate the settings.

The Zenarmor packet engine will restart after this change.
